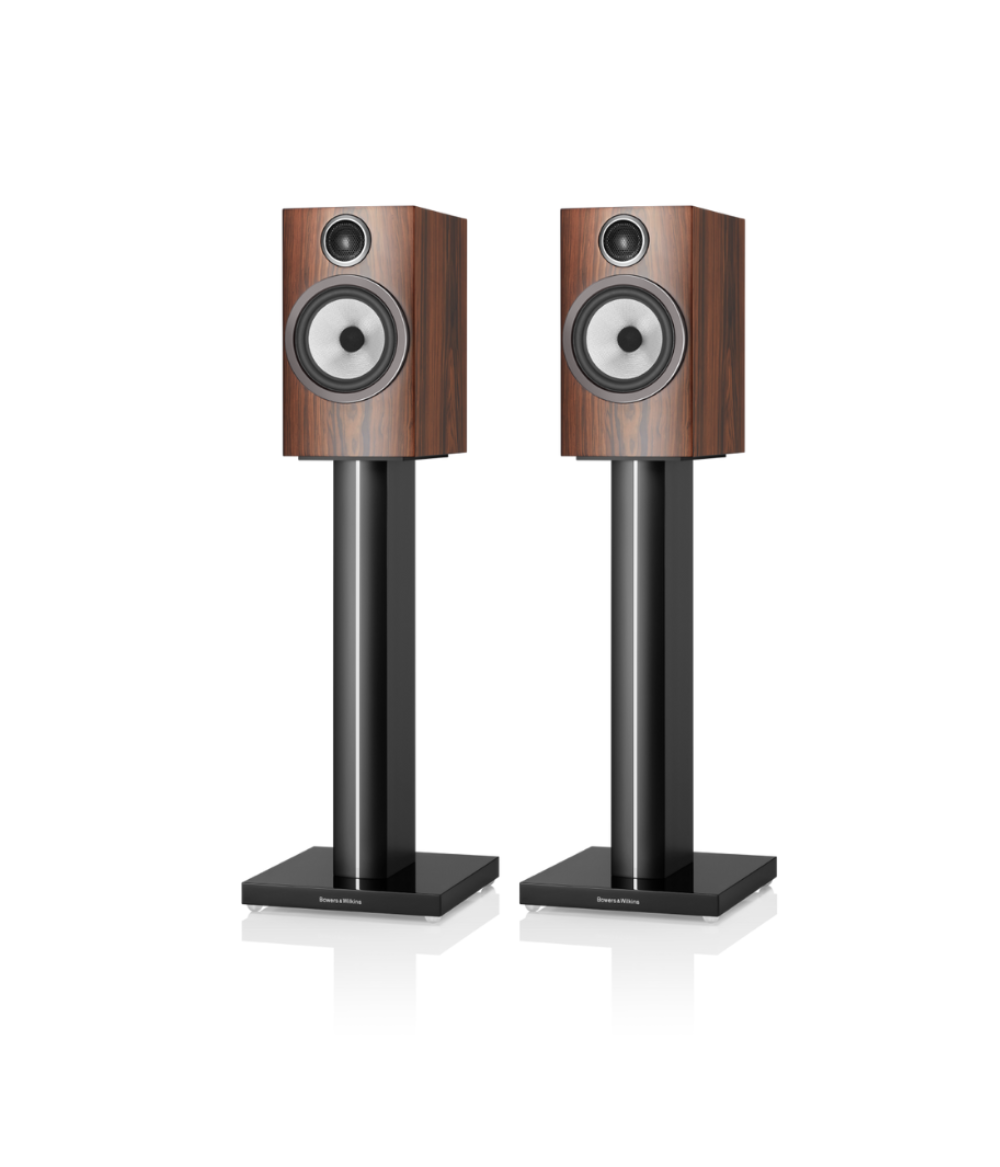

706 S3
Thanks to 706 S3’s decoupled Carbon Dome tweeter and carefully upgraded crossover, it provides exceptional detail and insight into your music, while its substantial 165mm (6.5in) Continuum Cone bass/midrange drive unit provides ample scale and extension for use in larger spaces.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Inspired by greatness
The new curved cabinet baffle and individual drive unit pods are inspired by the 800 Series Diamond, and greatly reduce cabinet coloration, ensuring a cleaner, more immersive sound.
Size & weight
Dimensions
Height: 345 mm (13.6 in) cabinet only
Width: 192 mm (7.6 in) cabinet only
Depth: 297 mm (11.7 in) cabinet only
334 mm (13.1 in) including grille and terminals
Net Weight
8.42kg (18.6 lb)
Technical details
Technical features
Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™
Drive Units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency responce (+/-3dB from reference axis)
50Hz – 28kHz ±3dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 150Hz – 20kHz
Recommended amplifier power
30W – 120W into 8Ω on unclipped programme
Description
2-way vented-box system
Frequency range
45Hz and 33kHz
Sensitivity (on axis at 2.83Vrms at 1m)
88dB spl (2.83Vrms, 1m)
Nominal impedance
8Ω (minimum 3.7Ω)
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes
Gloss Black
Satin White
Mocha
Rosenut (APAC only)
Grille finishes
Black
Grey (Satin White only)
