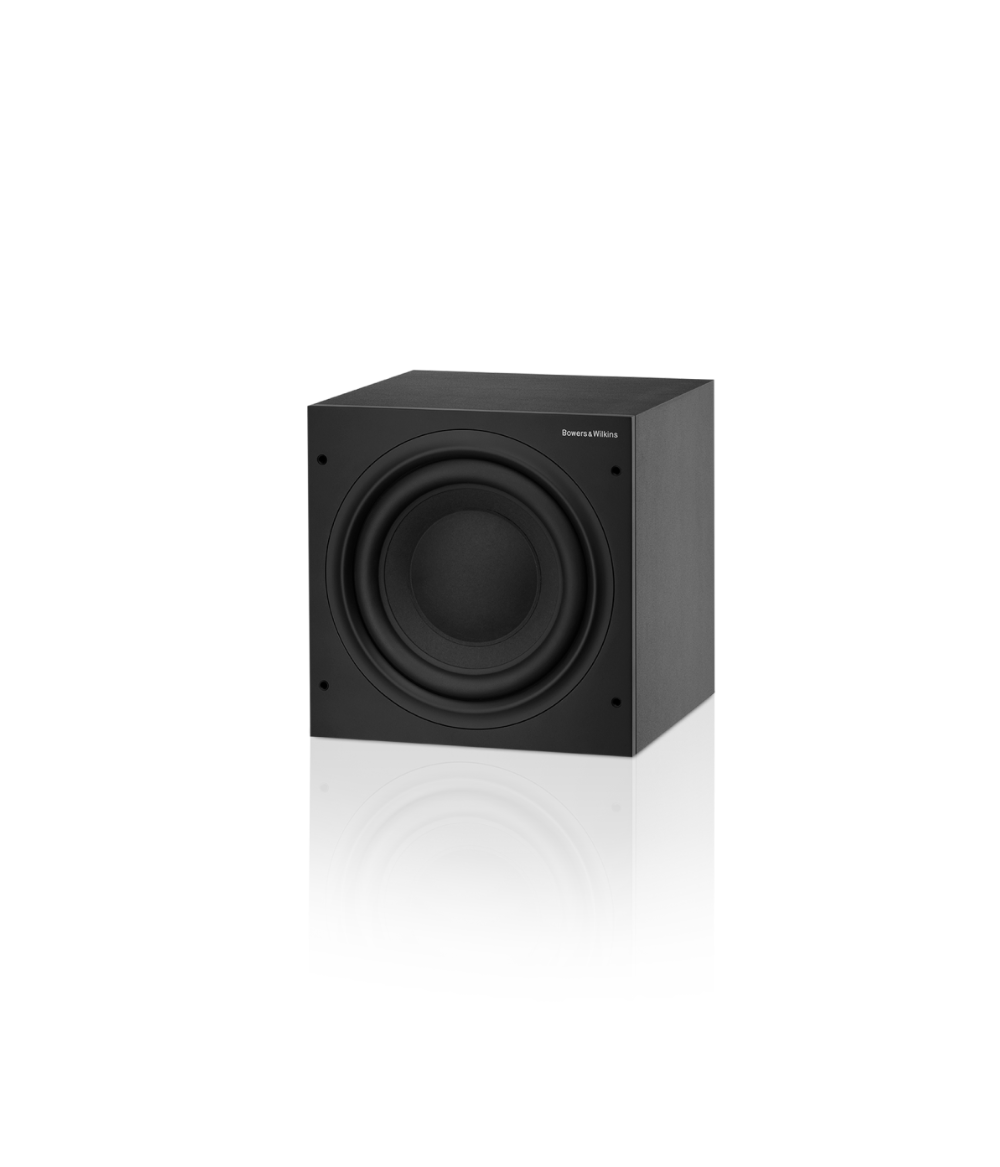

ASW608
For big sound in smaller spaces, you can’t beat ASW608, the most compact of the 600 Series subwoofers.
Mighty mini
The 8-in driver in ASW608 is designed for fast, tight and dramatic bass – even in very small rooms.
Power-packed
Under the skin of ASW608 is a powerful amplifier that gives it the ability to hit hard with music and movies.
Size & weight
Dimensions
Height: 260mm (10.2in) not including feet or spikes
272mm (10.7in) including feet
288mm (11.3in) including spikes
Width: 260mm (10.2in)
Depth: 305mm (11.99in) not including grilles
330mm (13in) including grilles and controls
375mm (14.8 in) including grilles and controls
Net Weight
8.85kg (19.5lb)
Technical details
Technical features
Volume level – line in
Volume level – speaker in
Low-pass filter frequency
Low-pass filter bypass (line in only)
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Drive Units
ø200mm (8in) paper / Aramid fibre cone long-throw
Amplifier power output
200W
Input impedance
33kΩ
Description
Active closed-box subwoofer system
Power consumption
40W / 0.5W standby
Inputs
Stereo line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Signal / Noise
>90dB
Finishes
Cabinet finishes
Black
White
Grille finishes
Black
Grey
Carton Contents:
1. DB Series subwoofer
2. Power cable(s)
3. Speaker grilles
4. Spike, decoupling and rubber feet
5. Literature pack
