It amplifies any signal in its entirety with disconcerting ease thanks to its high amplification capacity: 400 W RMS under 8 Ohms, 700 W RMS under 4 Ohms and especially 900W in impulse mode under 2 Ohms.
Modular, it can be bridged in mono and offer 1400 W RMS (2500 W peak) under 8 Ohms, and this, without thermal runaway So this amplifier can drive all the speakers of the market.
Beyond its power and its modularity, it is also the techniques used that impress: oriented towards the minimisation of background noise and distortion, as these are essential elements in the respect of the intensity of the notes in the service of musicality.
An iron fist in a velvet glove, that’s really what characterizes our amplifier, allowing you to find the live experience of a concert in all its complexity and finesse.
Our range is entirely made in France in our Burgundy factory.
TECHNICAL DATA
RMS power Wrms / channel / 8 Ω Class D : 400 W @ THD=1 % (clipping) 2 channels on
Harmonic Distortion (THD) at 100 W @ 8 Ω : < 0,005 % @ 1kHz
Harmonic Distortion (THD) at 1 W @ 8 Ω : < 0.003 % @ 1kHz
Intermodulation Distortion (IMD SMPTE) at 100 W : < 0.01%.
RMS power Wrms / channel / 4 Ω : 710 W @ THD=1 % (2 x 750 W peak with CF*=12 dB)
RMS power Wrms clamped mode 8Ω : 1400 W / 2500 W peak with CF=12 dB
Impulse power : 2 x 900 W under 2 Ohms with CF=12 dB
Power consumption (230 Vac / 120 Vac) : 250 W with PF* = 0,96 at Pmax/8 at 4 Ω 2 channels
Number of inputs : 1 x RCA Stereo + 1 x XLR Stereo + trigger In and Out
Input impedance : 1 MΩ
Sensitivity (V) : 9,5 dBu (sym), 3,5 dBu (asym) (2,3 V /1,15 V)
Rise time (μs) : 5ms at Pmax 8 Ω
Bandwidth : 2 Hz – 60 kHz @ -3 dB at 4 Ω
Damping Factor : 1000 at 8 Ohms between 20 Hz and 2 kHz
Signal to Noise Ratio (Dynamic) : 119 dB (balanced input) at Pmax in stereo
Max Operating Temperature : 40° C
Output configurations : Stereo / Mono bridge
Clipping LED and protection LED (current, power, temperature) per channel. Trigger input and output for stand-by and operation by isolated voltage (5 to 12 V). * CF = peak factor (10 log (P peak/P average)) ** PF = power factor (cos phi)
GENERAL
Stand-by power consumption : < 0,5 W
DIMENSIONS / WEIGHT
Dimensions : W x H x D: 95 x 430 x 302/333* mm *with connectors
Weight : 6,5 kg
PACKAGING
Packaging dimensions
L x H x P : 610 x 510 x 225 mm
Gross weight
9.5 kg
AMPLIFIERS
THE EXALTED SOUND
A COMPLEMENTARY DUO
The P1 preamplifier and the A2700 power block are perfectly complementary.
In terms of design, they form a homogeneous unit with clean lines.
The P1 preamplifier has a balanced output dedicated to the A2700 amplifier.
PREAMPLIFIER
P1
An audiophile model capable of sublimating all your music while maintaining an optimal signal-to-noise ratio and a distortion reduced to the strict minimum.
The P1 preamplifier is modular and can be equipped with optional input cards to perfectly adapt to your needs.
POWER AMPLIFIER

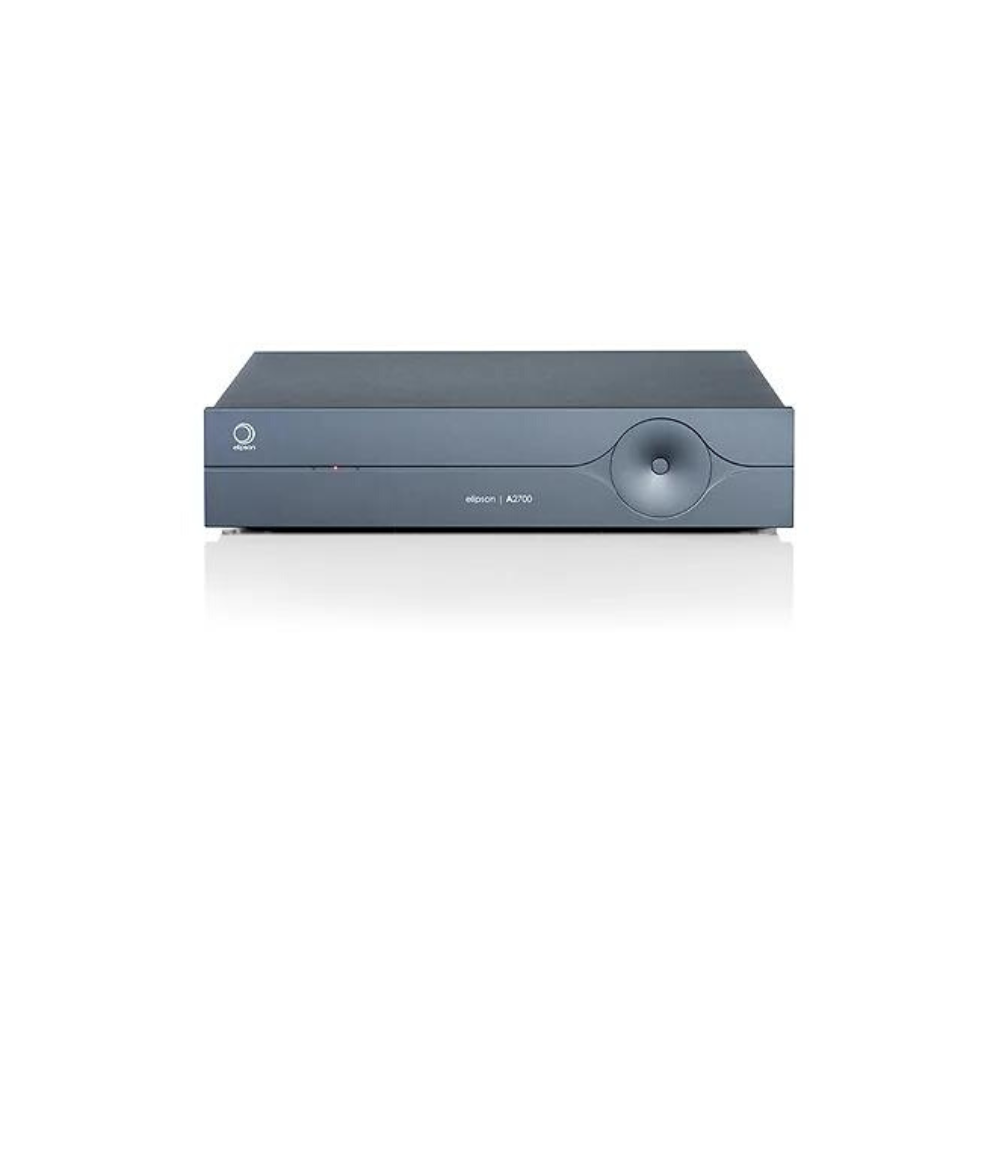

A2700
The A2700 power amplifier is the perfect complement to the P1 preamplifier.
It is capable of developing a high power of 400 W RMS under 8 ohms in stereo mode or 1400 W RMS under 8 ohms in mono mode.
POWER AMPLIFIER
A1000
Designed for home cinema and all passive subwoofers, the Infinite A1000 amp can deliver up to 1000 watts into 4 ohms. This mono Class D amp is equipped with a variety of inputs: RCA, XLR and high level terminals, to work in any home theatre or hi-fi configuration.
MULTIROOM AMPLIFIER
THE EXALTED MULTIROOM
AMPLIFICATEUR DE PUISSANCE
A680
High Audio performances with large power, elegant and perfect versatility
CONNECT 250
Stream your music via Bluetooth or Wi-Fi from any platform or stored music files.
The Connect 250 is particularly suitable for integration into any environment, even humid ones, thanks to the two brackets that allow it to be fixed against a wall or a false ceiling. The remote infrared cable supplied will facilitate its integration
MUSIC CENTER CONNECT HD
INTEGRATED AMPLIFIER – TUNER – CD PLAYER – BLUETOOTH & WI-FI
It is one of the few circular, ultra-connected amplifiers that offers exceptional audiophile sound.
It is of course compatible with the other products in the CONNECT ELIPSON range, for multi-room use.
YOU WILL FIND ENCLOSED :
- Elipson A2700 amplifier
- A power supply cable
- An user manual
- A pair of gloves
