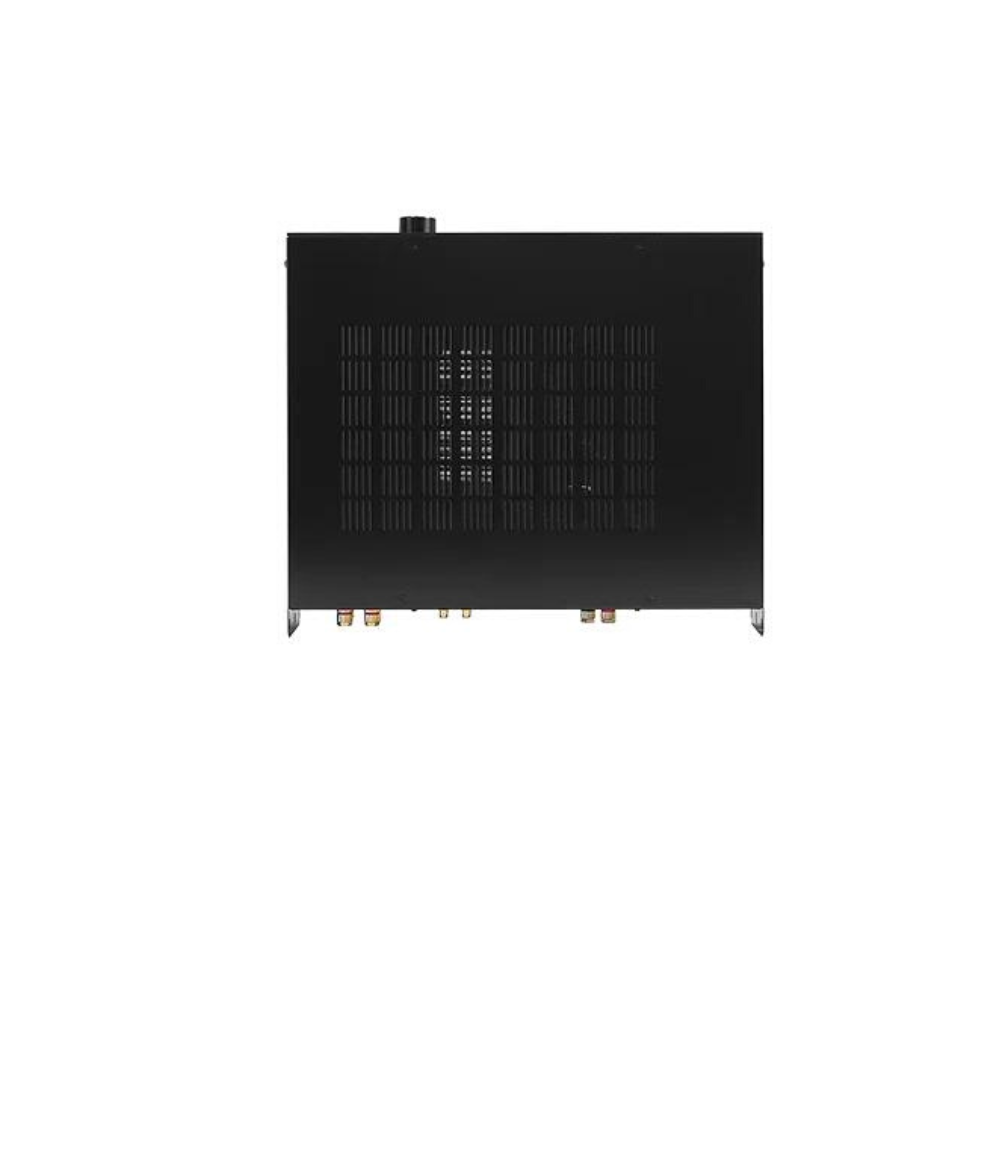

Designed for home cinema and all passive subwoofers, the Infinite A1000 amp can deliver up to 1000 watts under 4 ohms. This mono class D amp is equipped with several types of inputs: RCA, XLR and high level terminals, in order to operate in all possible home cinema or hi-fi configurations.
The Infinite A1000 power amp has a low-pass filter adjustable from 40 to 200 Hz. The user can even choose from several attenuation slopes, from -12 to -48 dB per octave, in 6 dB increments. In addition, seven EQ settings are predefined to tailor the sound to the user’s taste. In addition, a 9-frequency equalizer from 20 Hz to 125 Hz is available with an amplitude of -6 to +3 dB. The electrical phase is adjustable from 0 to 315° in 45° increments. Finally, the subsonic high-pass filter can be set to 20 or 40 Hz to limit the excursion of the diaphragm of the associated subwoofer(s).
The Infinite A1000 power amp also features an LFE mode, in which only the subsonic filter operates. This mode allows the high cutoff frequency to be controlled by a home theater amplifier.
The Infinite A1000 power amp is very complete and offers an impressive level of performance
Design
Mono power amplifier
Class D with DSP
Active low-pass filter adjustable in frequency and attenuation slope (40 Hz to 200 Hz and -12 to -18 dB /octave in 6 dB increments)
7 EQ profiles
8-band equalizer from 20 Hz to 125 Hz (-6 to +3 dB)
Phase adjustable from 0 to 315° in 45 Hz increments
Subsonic high-pass filter at 20 or 40 Hz
LFE-Mode
Low and high level inputs
Off-signal auto-off time: 5 to 30 mins (5 min increments)
Adjustable volume from -60 dB to +10 dB
Remote
Measures
Power: 1000 W with 1% THD into 4 ohms
THD 1W under 8 OHms: 0.08%
THD 1W into 4 ohms: 0.07%
S/N ratio: 100dB
Auto On Sensitivity: 3.2mV
12 V trigger: 6V DC at 2 mA min to trigger
Connectors
1x XLR stereo input
2x stereo RCA inputs
1x high level input screw terminal blocks
1x trigger 12 V mini jack
1x mini jack IR port
1x loudspeaker terminal output
General
Standby power consumption: <0.5W
Dimensions (W x H x D): 425 x 89 x 368 mm
Weight: 12.5kg
Packaging
Packaging dimensions
L x H x P : 610 x 510 x 225 mm
Gross weight
9.5 kg
