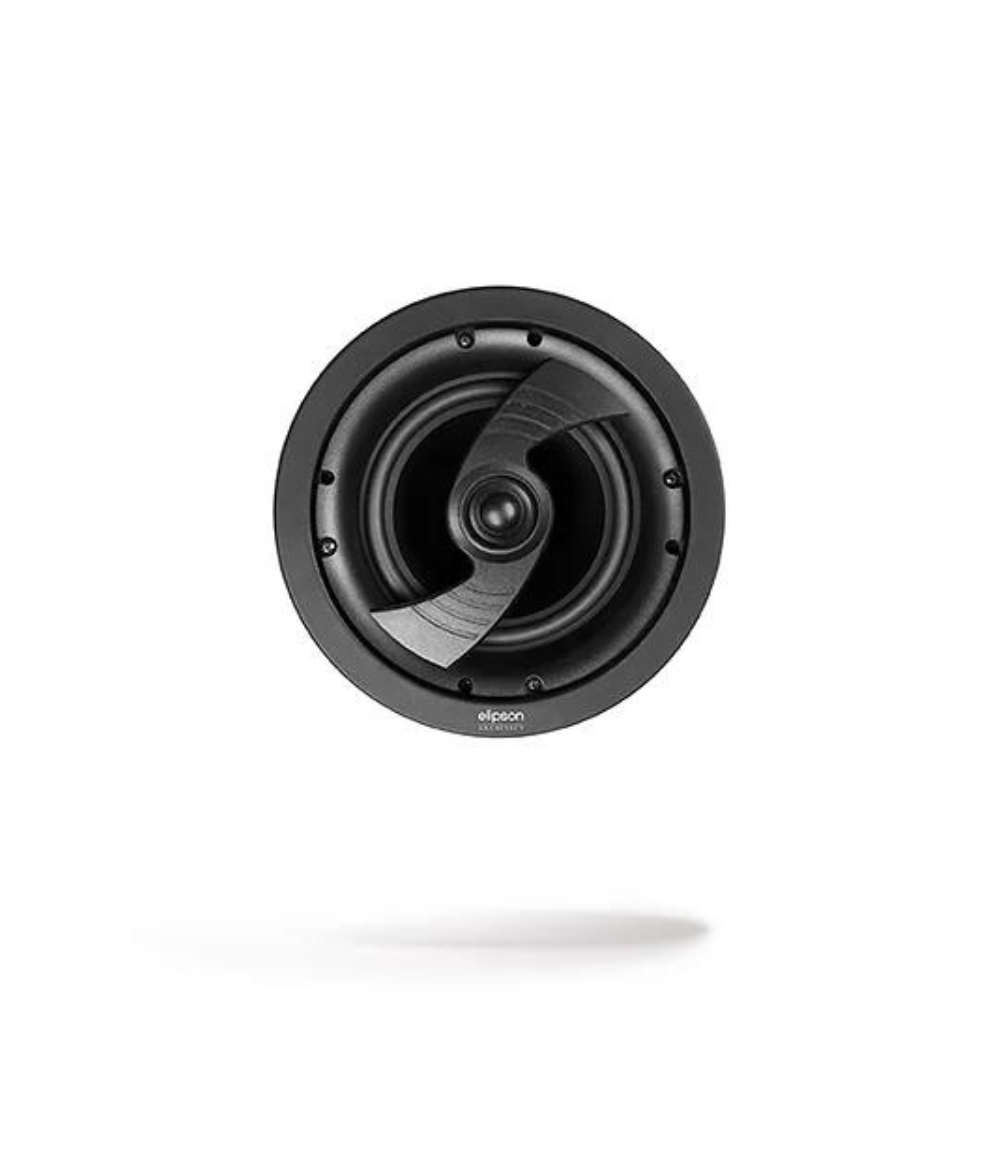

The Elipson IC6 in-ceiling speaker is part of the Architect IN range, a collection of visually discreet audio system components. This 2-way midsize speaker is compatible with most hi-fi amplifiers and home theater receivers on today’s market. It handles immersive, multichannel formats while adding a vertical dimension to your Atmos-compatible home theater installation.
The in-wall and in-ceiling speakers in Elipson’s IN range have been designed for both private and public spaces. They are a testament to Elipson’s commitment to offering breathtaking audio quality. The IC6 may be used in a variety of settings: conference rooms, shopping malls, amphitheatres, restaurants, stores, hotels, offices, private screening rooms, schools, private home theaters, integrated hi-fi systems…
The Elipson IC6 in-ceiling speaker features a 2-way coaxial low-mid driver (16,5 cm) composed of cellulose fibre and two silk dome tweeters (19 mm) which can be adjusted in order to direct sound waves toward the listening area. The speaker’s white, magnetic grille may be painted to ensure perfect integration with your interior decor.
The IC6 speaker has a sensitivity rating of 87 dB and a maximum power handling of 100 W. With a frequency response ranging from 70 Hz to 20 kHz, this model is an ideal surround speaker solution for a home theater installation.
THE ARCHITECT RANGE
THE INTEGRATED SOUND
BUILT-IN SYSTEM
ELIPSON DISCRETENESS
INFINITE IN-CEILING
Taking up the aesthetic codes of the IN-CEILING, these in-wall and in-ceiling loudspeakers allow you to provide sound in large spaces. Developed in 2 way coaxial, the INF 6 and speakers are equipped with an 6″ and8” carbon fiber bass midrange driver, offering a rich midrange and deep, accurate bass. The 3/4″ and 1” titanium dome tweeter, which can be rotated by 30° in all directions, contribute to the richness of the sound
BUILT-IN SYSTEM
ELIPSON DISCRETENESS
Speaker : In-Ceiling
Number of channels:2
Tweeter (treble):25 mm silk dome, orientation 35 to 40° in all directions
Bass :165 mm paper cone, rubber edge
Recommended amplifier:100W
Frequency Response (±3dB):70Hz – 20kHz
Cutoff frequency :2950Hz
Sensitivity:87dB / 1W / 1m
Impedance:8 Ohms
Dimensions:Ø230 x D102 mm
Cutting dimension Ø:200mm
Weight :1,9 kg
PACKAGING(UNIT):
Dimensions: WxHxD : W296 x H130 x D279 mm
Weight: 2,07 kg
Pack contents :
- 1 acoustic speaker
- 1 aluminium grill
- 1 cut-out template
