It will allow you to easily amplify a pair of passive speakers and stream your music via a Bluetooth or Wi-Fi network from any platform or stored music files.
The Connect 250 is particularly well suited to be integrated into any environment, even if it is damp, thanks to the two brackets that allow it to be fixed to a wall or false ceiling. The remote infra-red cable supplied will facilitate its integration.
The Elipson BT application (Android and iOS) allows you to rename each Connect 250 that appears on your Bluetooth network. It is of course compatible with the other products in the ELIPSON CONNECT range, for multi-room use.
TECHNICAL DATA
Number of output channels : 2
Power (W / channel) | 4 ohms | 1 kHz : 50 W @ 1% THD+N
Power (W / channel) | 8 ohms | 1 kHz : 30 W @ 1% THD+N
Input sensitivity : ~300 mV – at full power
Maximum input voltage (RMS) : 1.5 V
Signal to Noise Ratio (SNR) at THD+N < 1%, f = 1 kHz, Gain = 20 dB : 102 dB
Total Harmonic Distortion THD+N @ 1kHz : < 0.1%.
Resolution : 44.1kHz/24bit
Bluetooth & Codec Version : 5.0 – SBC Network Wi-Fi 2.4 GHz IEEE 802.11 b/g/n – Ethernet Simultaneous streaming to multiple devices up to 10 rooms, depending on network quality
Main operating voltage: 24V/5A DC
Power consumption in standby mode: < 0.5 W
ACCESSORIES / SPECIAL FEATURES
– Wall mounting brackets and remote infrared receiver included
– Protection of the connectors, compatible for use in damp rooms
DIMENSIONS
Dimensions W x H x D : 120 x 30 x 120 mm
Power supply dimensions W x H x D : 40 x 170 x 65 mm
Weight – without power supply and accessories : 240 g
PACKAGING
Dimensions W x H x D : 240 x 100 x 180 mm
Gross weight : 1.1 kg
AMPLIFIERS
THE EXALTED SOUND
A COMPLEMENTARY DUO
The P1 preamplifier and the A2700 power block are perfectly complementary.
In terms of design, they form a homogeneous unit with clean lines.
The P1 preamplifier has a balanced output dedicated to the A2700 amplifier.
PREAMPLIFIER
P1
An audiophile model capable of sublimating all your music while maintaining an optimal signal-to-noise ratio and a distortion reduced to the strict minimum.
The P1 preamplifier is modular and can be equipped with optional input cards to perfectly adapt to your needs.
POWER AMPLIFIER
A2700
The A2700 power amplifier is the perfect complement to the P1 preamplifier.
It is capable of developing a high power of 400 W RMS under 8 ohms in stereo mode or 1400 W RMS under 8 ohms in mono mode.
POWER AMPLIFIER
A1000
Designed for home cinema and all passive subwoofers, the Infinite A1000 amp can deliver up to 1000 watts into 4 ohms. This mono Class D amp is equipped with a variety of inputs: RCA, XLR and high level terminals, to work in any home theatre or hi-fi configuration.
MULTIROOM AMPLIFIER
THE EXALTED MULTIROOM
AMPLIFICATEUR DE PUISSANCE
A680
High Audio performances with large power, elegant and perfect versatility

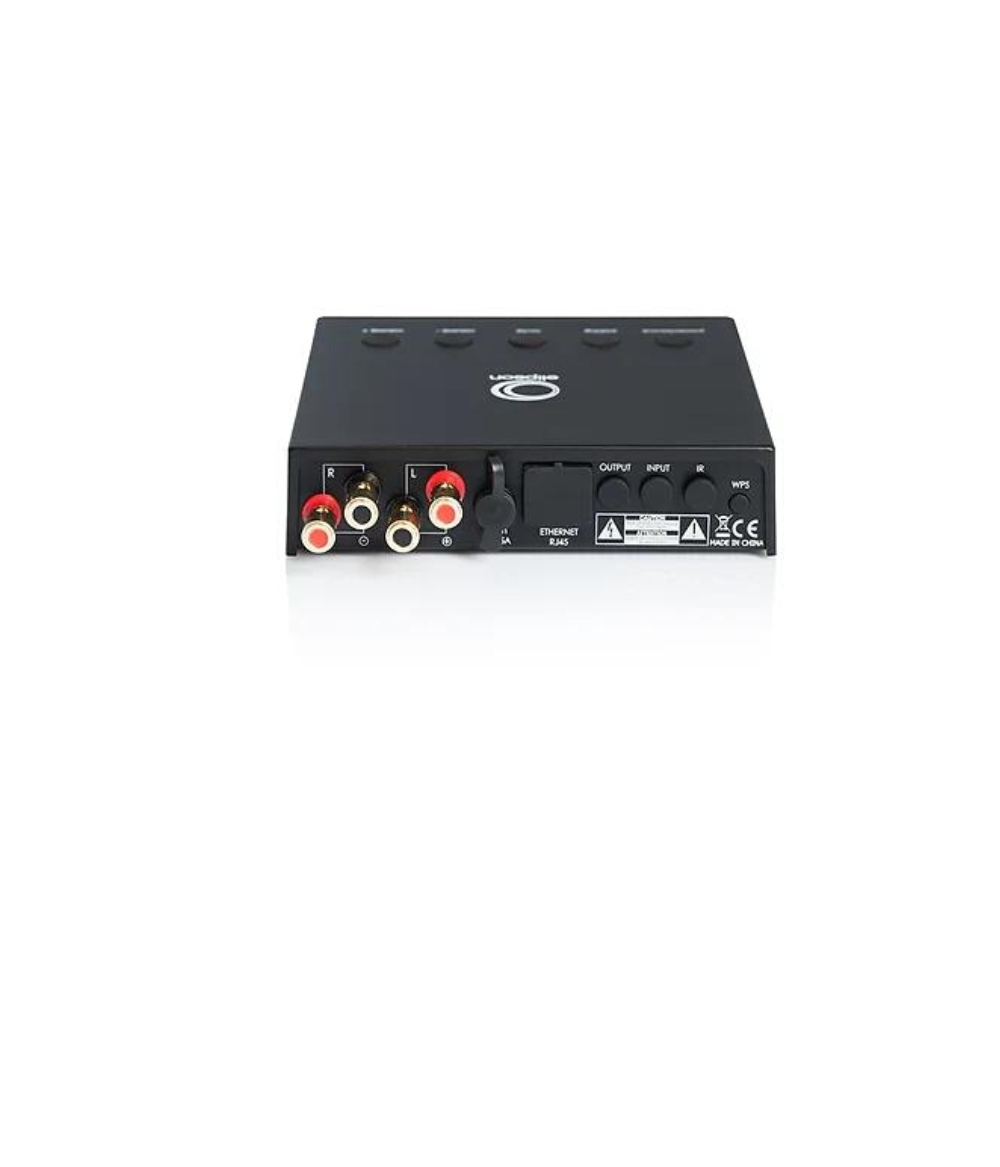

CONNECT 250
Stream your music via Bluetooth or Wi-Fi from any platform or stored music files.
The Connect 250 is particularly suitable for integration into any environment, even humid ones, thanks to the two brackets that allow it to be fixed against a wall or a false ceiling. The remote infrared cable supplied will facilitate its integration
MUSIC CENTER CONNECT HD
INTEGRATED AMPLIFIER – TUNER – CD PLAYER – BLUETOOTH & WI-FI
It is one of the few circular, ultra-connected amplifiers that offers exceptional audiophile sound.
It is of course compatible with the other products in the CONNECT ELIPSON range, for multi-room use.
- The Connect 250 Amplifier
- An infrared remote control – Lithium battery CR2025 included
- A remote infrared sensor
- A stereo mini-jack 3.5 cable
- Two wall mounting brackets
- The power supply
