Taking up the aesthetic codes of the IN-CEILING, these in-wall and in-ceiling speakers are much more accomplished in their sound rendering and allow you to provide sound in large spaces, to offer a quality worthy of a home cinema to your interior, or even to complete in Atmos the In/On Wall speakers of the famous Infinite range.

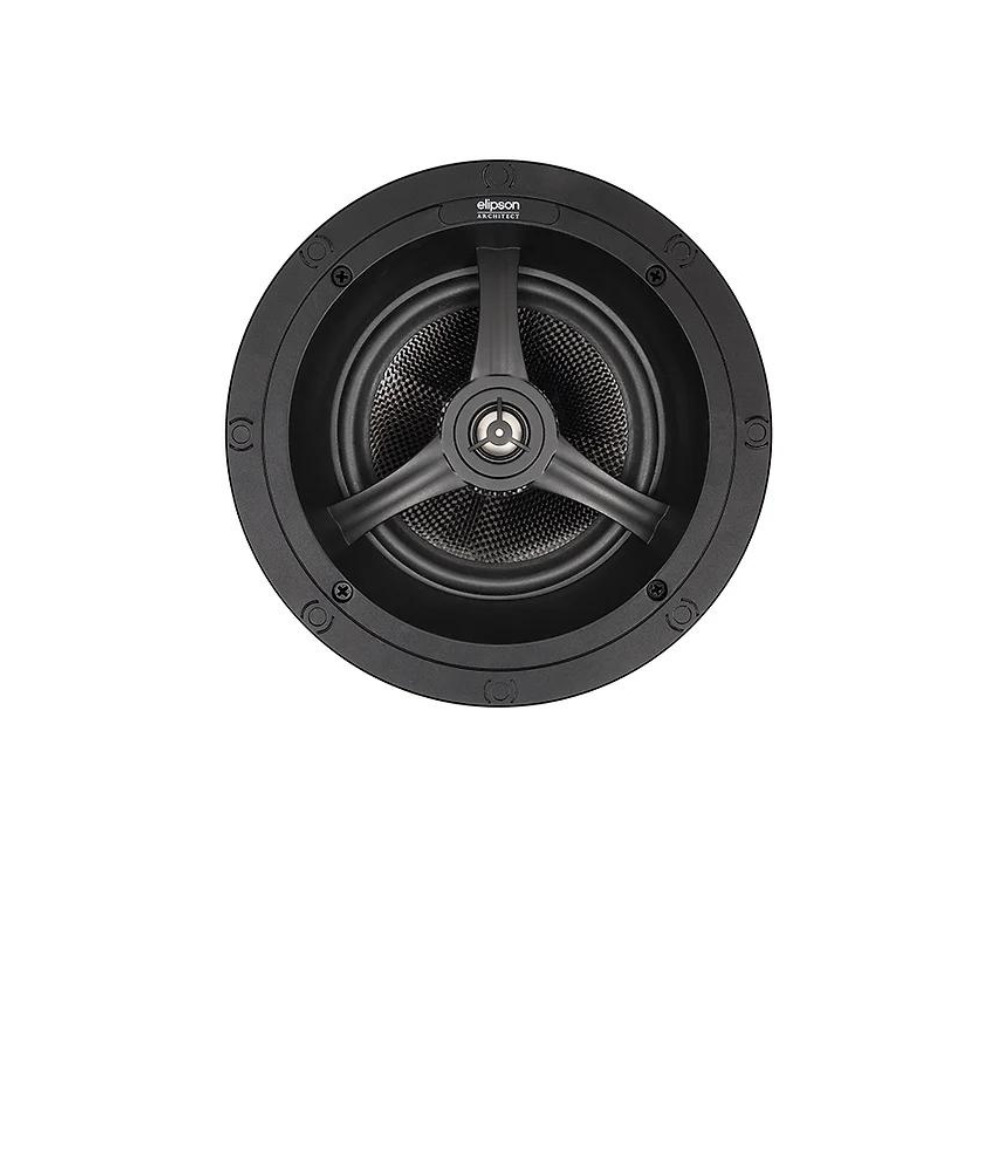

Developed as a 2-way coaxial speaker, the INFINITE IN-CEILING 8 features a 20cm carbon fibre midrange/bass driver pioneered by the Infinite 8 & 12, offering a rich midrange and deep, accurate bass.
The 25mm titanium dome tweeter, which can be rotated by 30 degrees in all directions, contributes to the harmonic richness.
THE ARCHITECT RANGE
THE INTEGRATED SOUND
BUILT-IN SYSTEM
ELIPSON DISCRETENESS
INFINITE IN-CEILING
Taking up the aesthetic codes of the IN-CEILING, these in-wall and in-ceiling loudspeakers allow you to provide sound in large spaces. Developed in 2 way coaxial, the INF 6 and speakers are equipped with an 6″ and8” carbon fiber bass midrange driver, offering a rich midrange and deep, accurate bass. The 3/4″ and 1” titanium dome tweeter, which can be rotated by 30° in all directions, contribute to the richness of the sound
BUILT-IN SYSTEM
ELIPSON DISCRETENESS
TECHNICAL
Type: In-ceiling speaker
Power: 100W
Loudspeaker: 2-way coaxial Bass – midrange 160 mm: carbon fiber + polymethylacrylamide (PMI) foam Tweeter: 19 mm titanium dome that can be rotated 30° in all directions.
Frequency response: 60Hz – 30kHz
Sensitivity: 88dB / 1W / 1m
Impedance: 8 ohms
Cutoff frequency: 3200 Hz
FINISHES
Colour: White (ready to paint)
DIMENSIONS
Dimensions: Ø 237 mm x D100 mm
Cut- out dimensions: Ø 212 mm
Weight: 1.75kg
PACKAGING(UNIT):
Dimensions: WxHxD: 290 x 145 x 285 mm
Weight: 2.3 kg
