The Legacy range perfectly embodies the brand’s HIFI know-how! To design this new range, Elipson has taken advantage of the innovations developed in-house for more than 60 years through emblematic models such as the La Religieuse loudspeaker, the 4050 or 1303 model, combined with the modern materials of our time.
Fast, bright, perfect extension of the extreme frequencies, expressive midrange, airy and realistic sound image are all qualities that characterise Legacy speakers. In the end, they forget themselves and give way to musical pleasure close to reality.

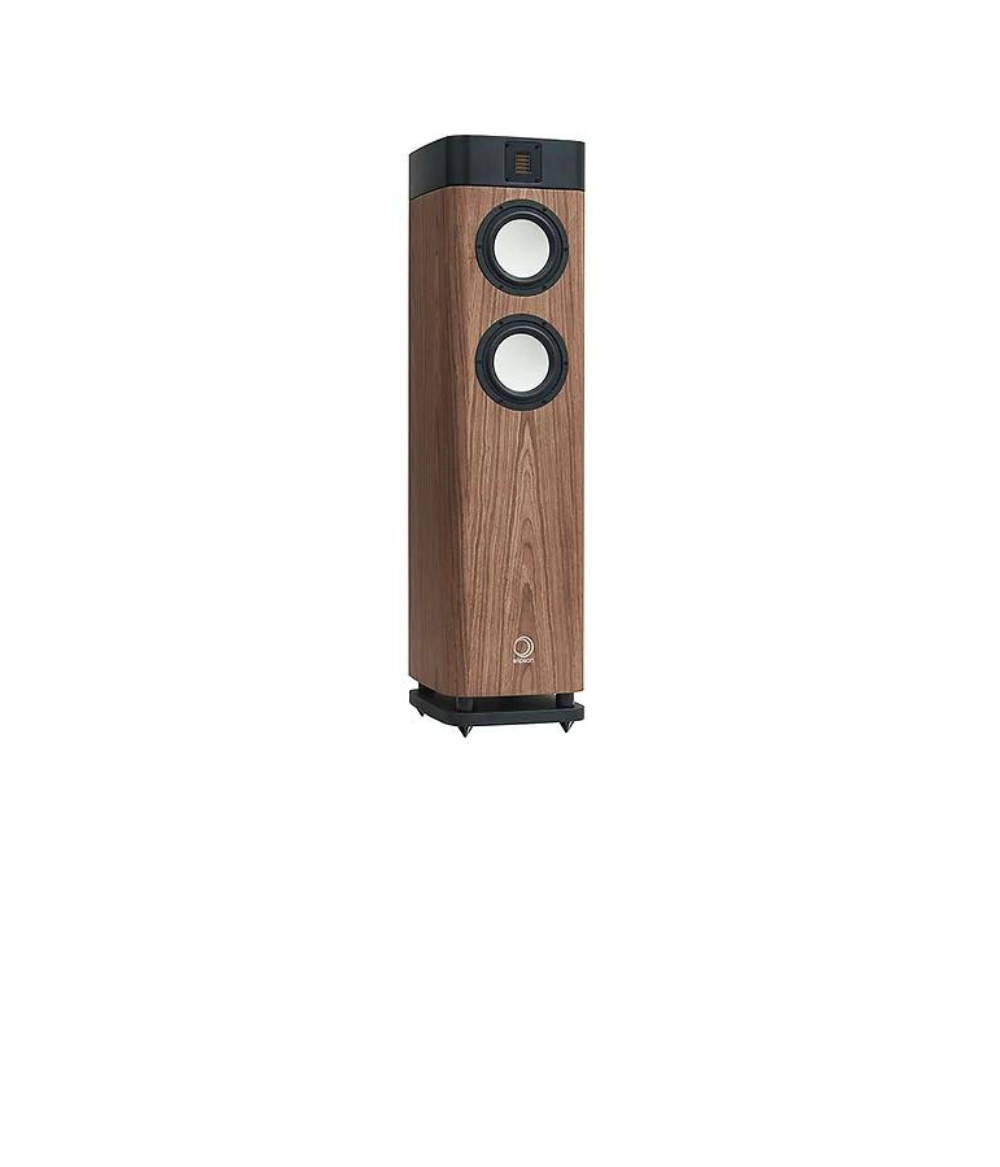

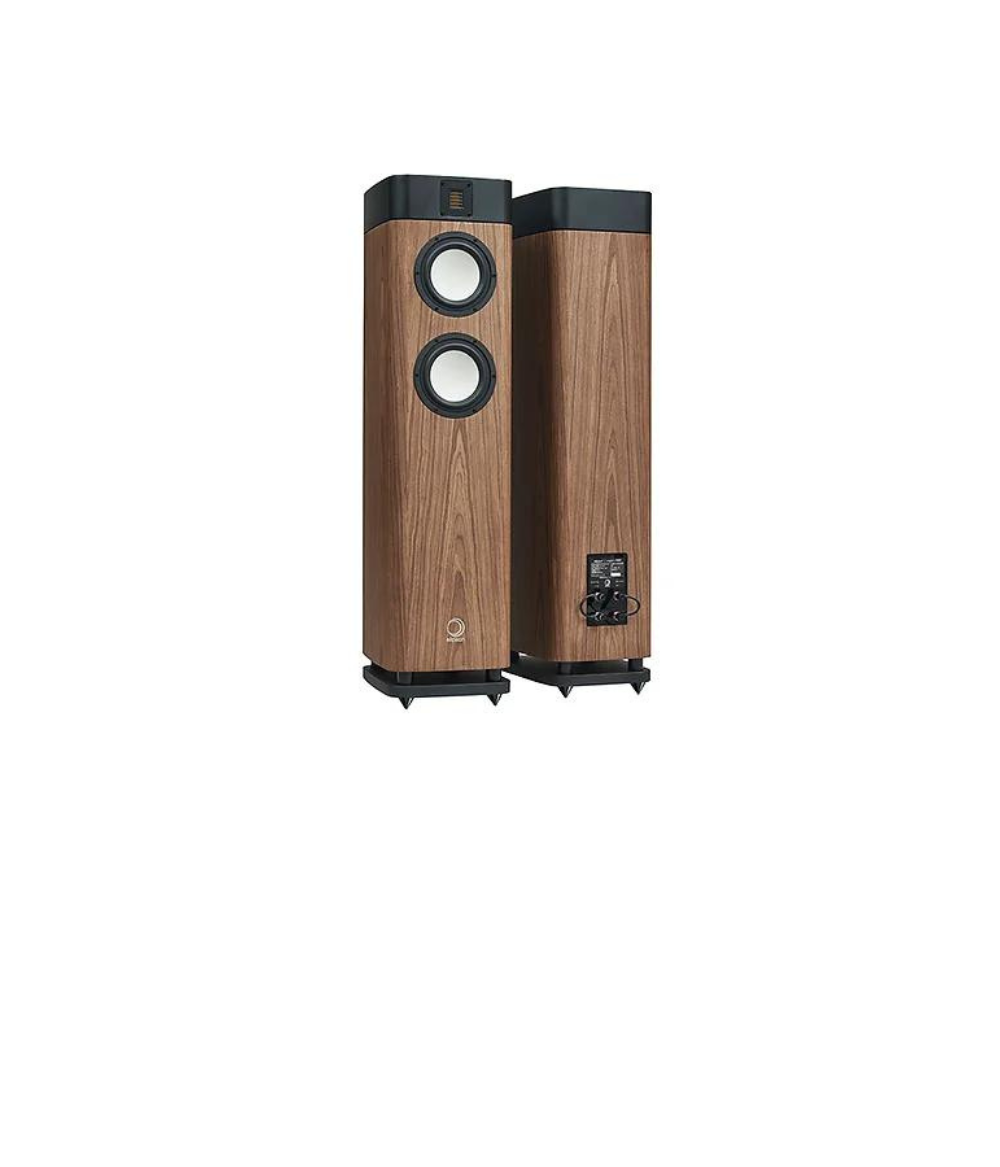

The Elipson Legacy 3220 floorstanding loudspeaker is part of the Elipson Legacy loudspeaker range which also includes the Elipson Legacy 3210 compact loudspeaker and the Elipson Legacy 3230 floorstanding loudspeaker.
The Legacy 3220 is a 2 1/2 way model with 16.5cm diameter drivers for the bass and midrange registers, topped with a wide dispersion AMT tweeter.
THE ELIPSON LEGACY
The Legacy range perfectly embodies the Elipson brand’s HIFI know-how. To conceive this new range, we have taken advantage of the innovations developed for more than 60 years in-house through emblematic models such as the Religieuse, the 4050 or the 1303, associated with the modern materials of our time.
Fast, bright, perfect extension of the extreme frequencies, expressiveness of the midrange register, airy and realistic sound image, are all qualities that characterise the Legacy speakers
ELIPSON’S SIGNATURE

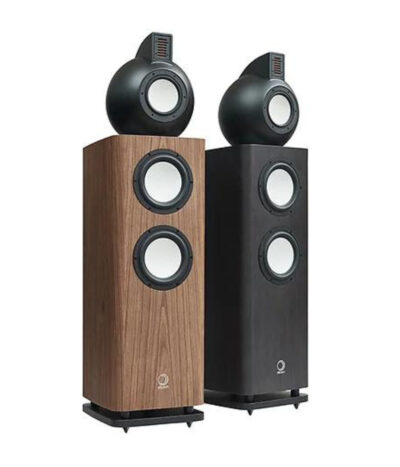

The LEGACY 3230 loudspeaker takes up the mythical codes of Elipson loudspeakers with its decoupled sphere, made of silica-filled resin, including the midrange and high frequency drivers. This sphere offers a free propagation of the high and medium frequencies.
An AMT (Air Motion Transformer) tweeter tops the upper part of the sphere and allows to combine lightness, large emissive surface and perfect respect of transients.
- Dimensions :
W347 x H1340 x D450 mm - Weight :
50 kg - Finishes :
Silver oak or walnut + black satin – Sphere: black satin - Type :
Floorstanding speaker 2.5 way Bass-reflex - Power :
150 W RMS - Drive-units :
Mid-woofer : 2 x 6.5” aluminium cone with ceramic layer
Tweeter Ribbon-AMT - Frequency response :
35-30000 Hz (+/- 3 dB) – 38 kHz @ -5dB - Sensitivity :
89 dB/1W/1m
Nominal impedance :
6 Ohms (Min : 4,4 Ohm @ 168 Hz) - Connectors :

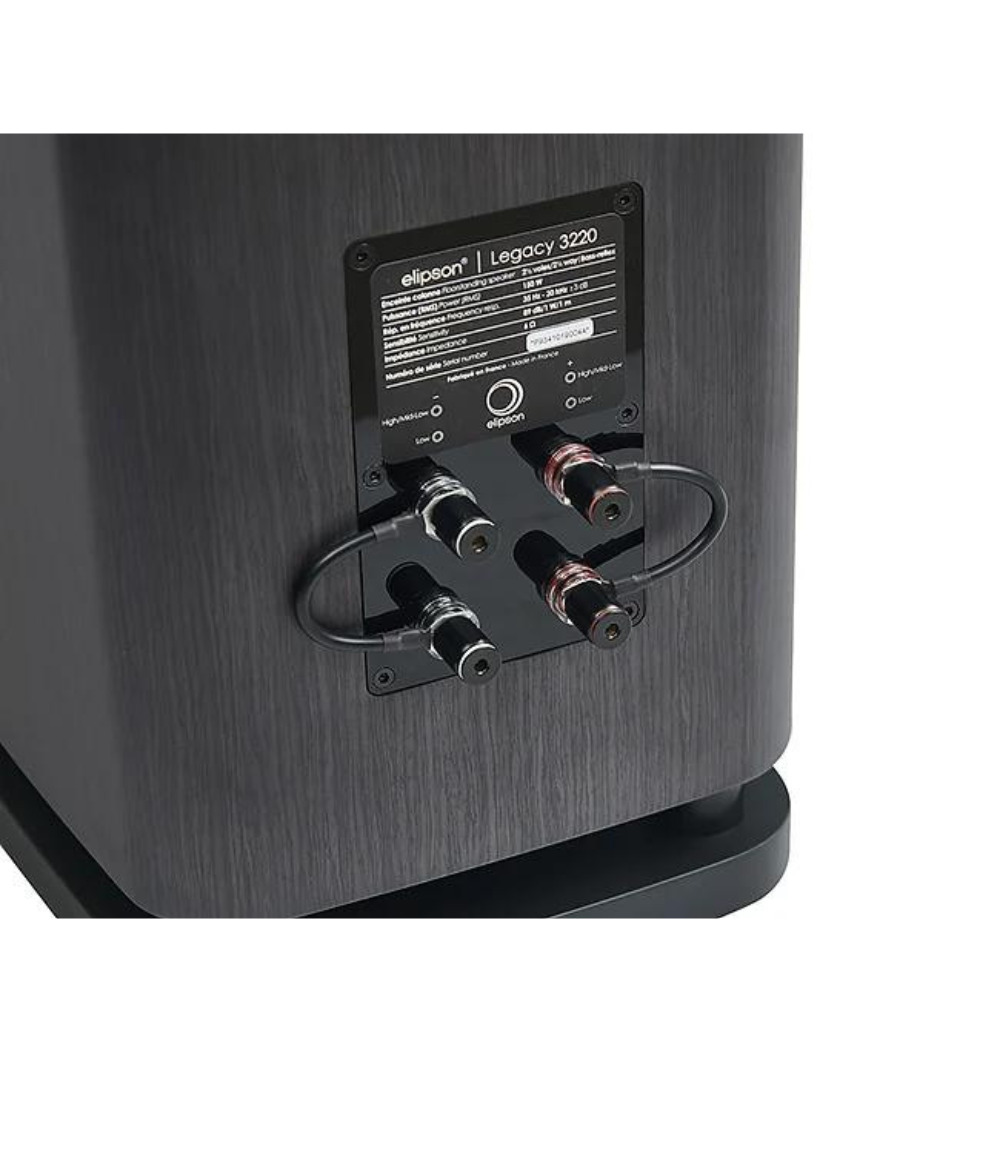

Audiophile quality for bi-wiring or bi-amplification
Cut-off frequencies :
600 & 2800 Hz - Crossover slopes :
High Pass : 18 dB/octave with impedance equalization
Low Pass (Upper Driver) : 12 dB/octave with Notch circuitry
Low Pass (Lower Driver) : 6 dB/octave - Cabinet :
MDF 25-30mm with braces (3) coupling woofers cabinet with structure
Resin spherical enclosure, filled with Silica - Bass-reflex type :
Down firing – flared shape
1. Loudspeaker
2. Protective cover
3. Gloves
4. Spikes and counter-spikes
5. User Manual
