The Legacy range perfectly embodies the brand’s HIFI know-how! To design this new range, Elipson has taken advantage of the innovations developed in-house for more than 60 years through emblematic models such as the La Religieuse loudspeaker, the 4050 or 1303 model, combined with the modern materials of our time.
Fast, bright, perfect extension of extreme frequencies, expressive midrange, airy and realistic sound image, are all qualities that characterize the Legacy speakers. In the end, they are forgotten and give way to musical pleasure close to reality.

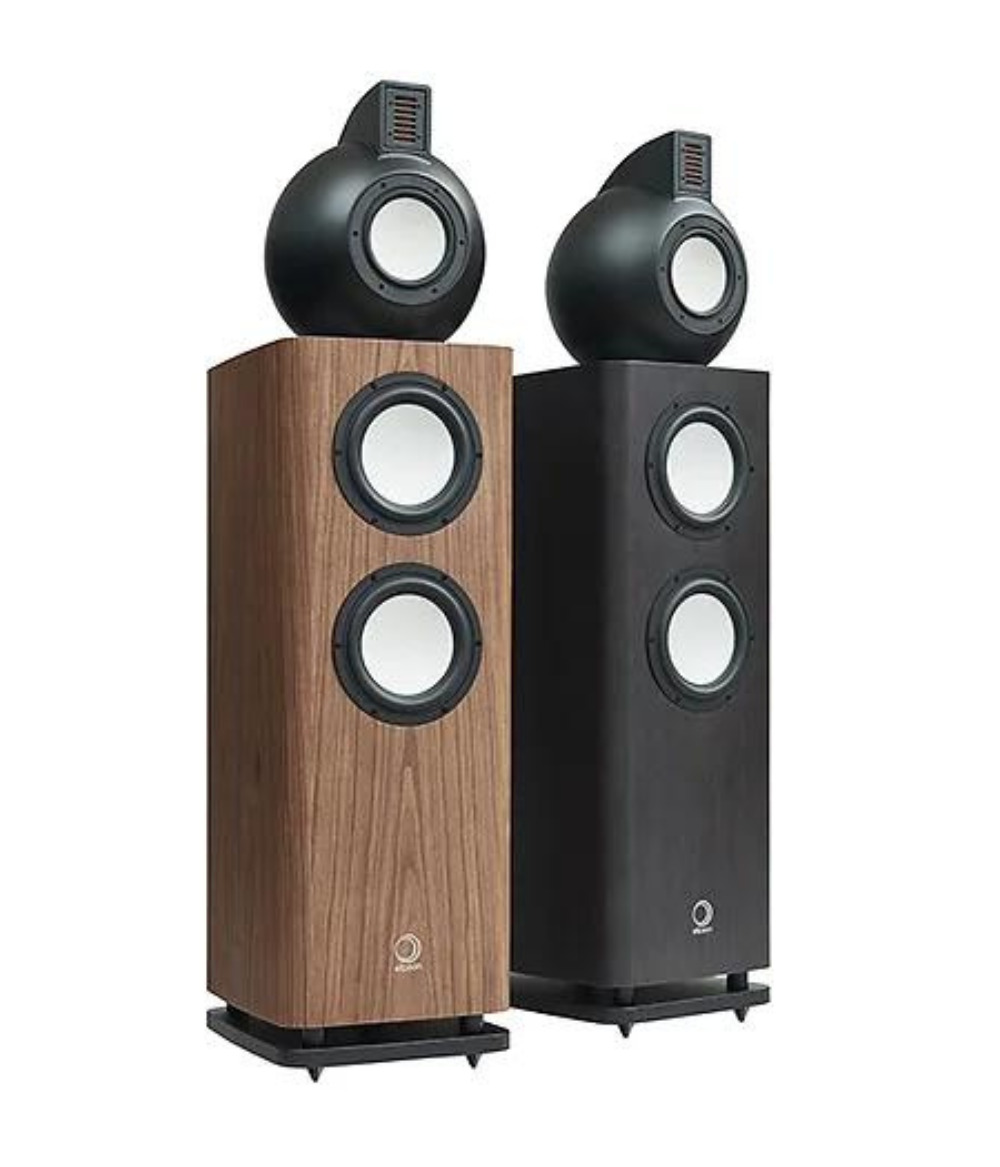

Made in France, the range is composed of a bookshelf speaker, Legacy 3210 for small spaces and two floorstanding speakers including the Legacy 3230, the flagship of the brand.

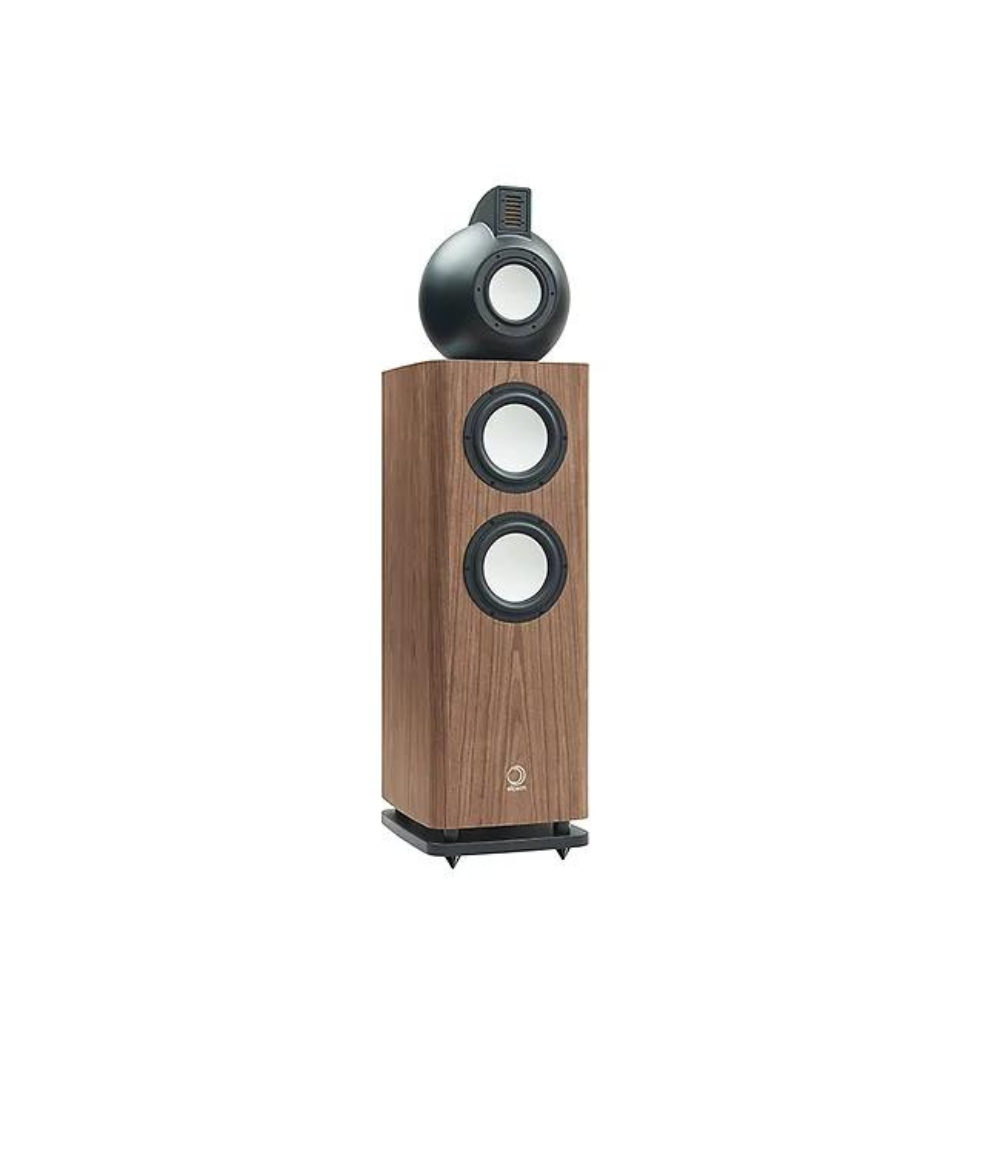

The Legacy 3230 is a 3-way loudspeaker, whose column houses the subwoofer with two 21cm (8in) cellulose pulp drivers with an aluminium surface; surmounted by a resin sphere housing the 16cm (6in) ceramic midrange driver and a wide dispersion AMT ribbon tweeter.
THE ELIPSON LEGACY
The Legacy range perfectly embodies the Elipson brand’s HIFI know-how. To conceive this new range, we have taken advantage of the innovations developed for more than 60 years in-house through emblematic models such as the Religieuse, the 4050 or the 1303, associated with the modern materials of our time.
Fast, bright, perfect extension of the extreme frequencies, expressiveness of the midrange register, airy and realistic sound image, are all qualities that characterise the Legacy speakers
ELIPSON’S SIGNATURE

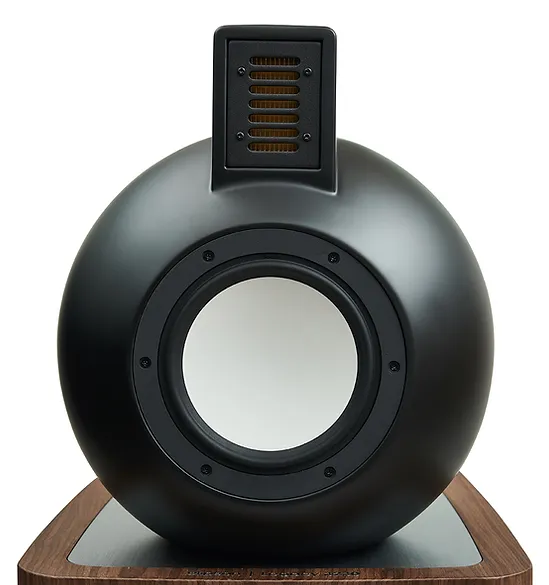

The LEGACY 3230 loudspeaker takes up the mythical codes of Elipson loudspeakers with its decoupled sphere, made of silica-filled resin, including the midrange and high frequency drivers. This sphere offers a free propagation of the high and medium frequencies.
An AMT (Air Motion Transformer) tweeter tops the upper part of the sphere and allows to combine lightness, large emissive surface and perfect respect of transients.
- Dimensions :
W347 x H1340 x D450 mm - Weight :
50 kg - Finishes :
Silver oak or walnut + black satin – Sphere: black satin - Type :
Floorstanding speaker 3 way Bass-reflex – Sphere - Power :
200 W RMS - Drive-units :
Woofer : 2 x 8” cone cellulose pulp with aluminium layer
Midrange : 6” pure ceramic
Tweeter Ribbon-AMT - Frequency response :
25-30000 Hz (+/- 3 dB) – 38 kHz @ -5dB - Sensitivity :
91 dB/1W/1m
Nominal impedance :
4 Ohms (Min : 2,9 Ohm @ 103 Hz) - Connectors :

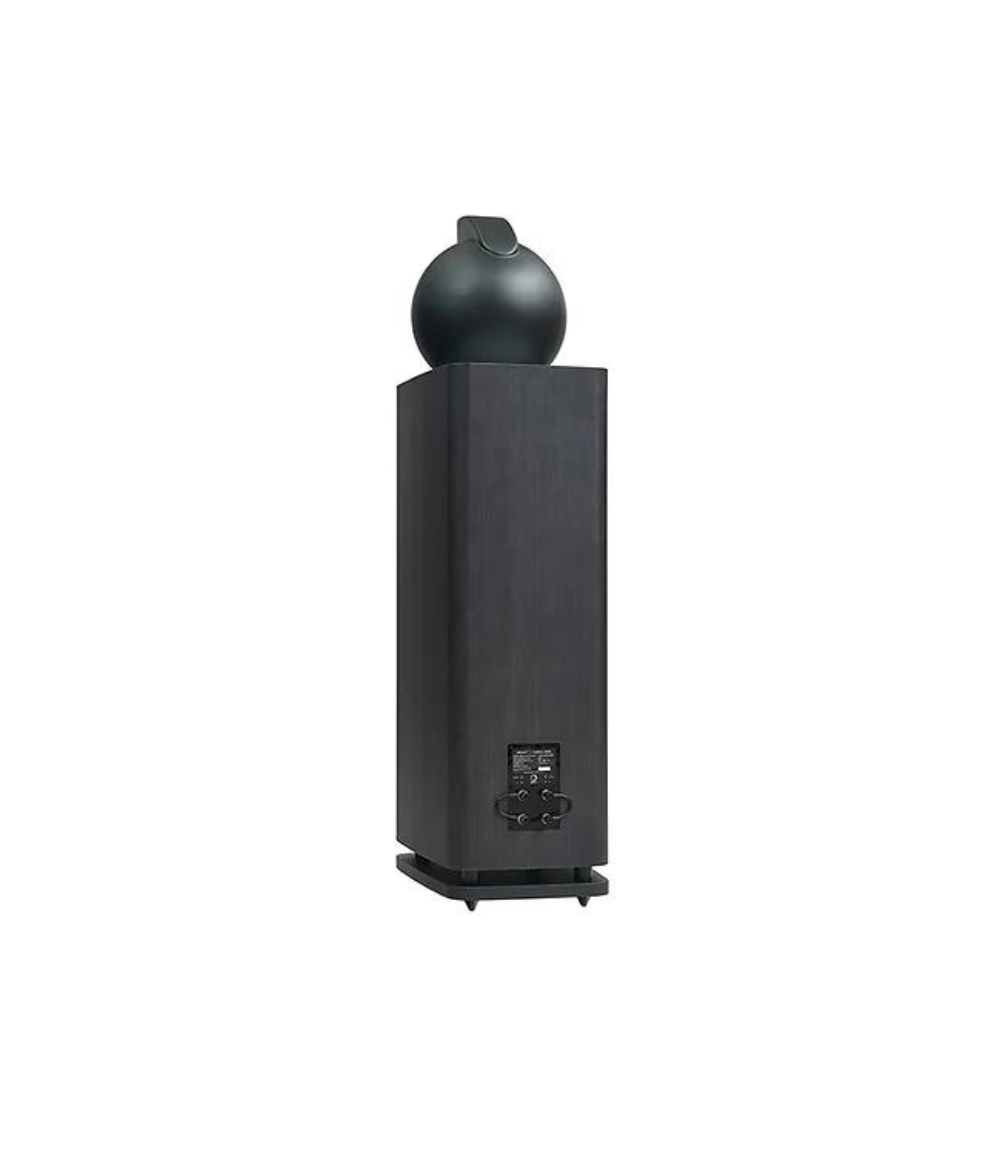

Audiophile quality for bi-wiring or bi-amplification - Cut-off frequencies :
400 & 3200 Hz - Crossover slopes :
High Pass : 12 dB/octave with impedance equalization -24 dB acoustics
Band Pass : 12 dB/octave
Low Pass : 12 dB/octave - Cabinet :
MDF 25-30mm with braces (3) coupling woofers cabinet with structure
Resin spherical enclosure, filled with Silica - Bass-reflex type :
Down firing – flared shape
1. Loudspeaker
2. Protective cover
3. Gloves
4. Spikes and counter-spikes
5. User Manual
