IDEAL LUX Etere ap

113.05 inc V.A.T.

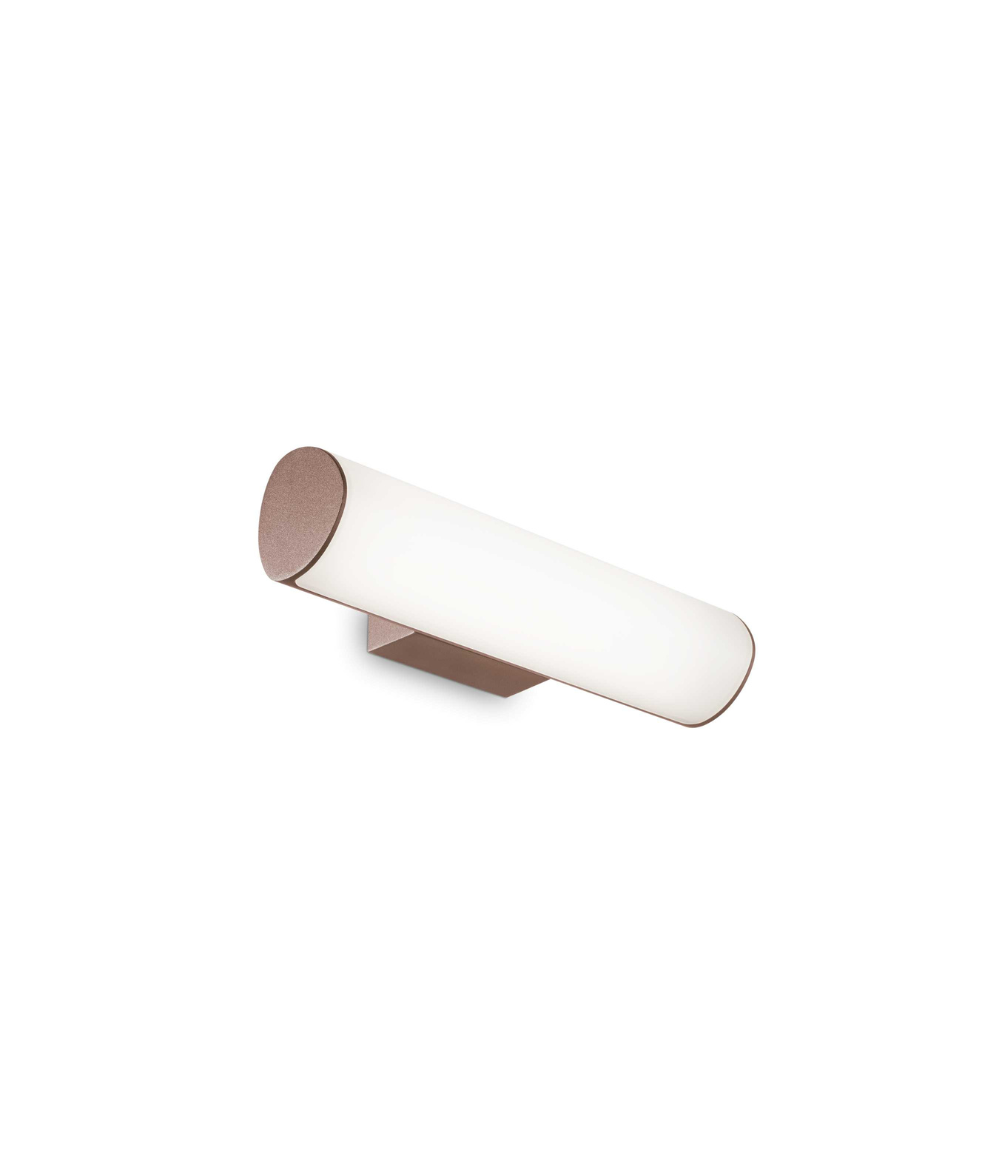

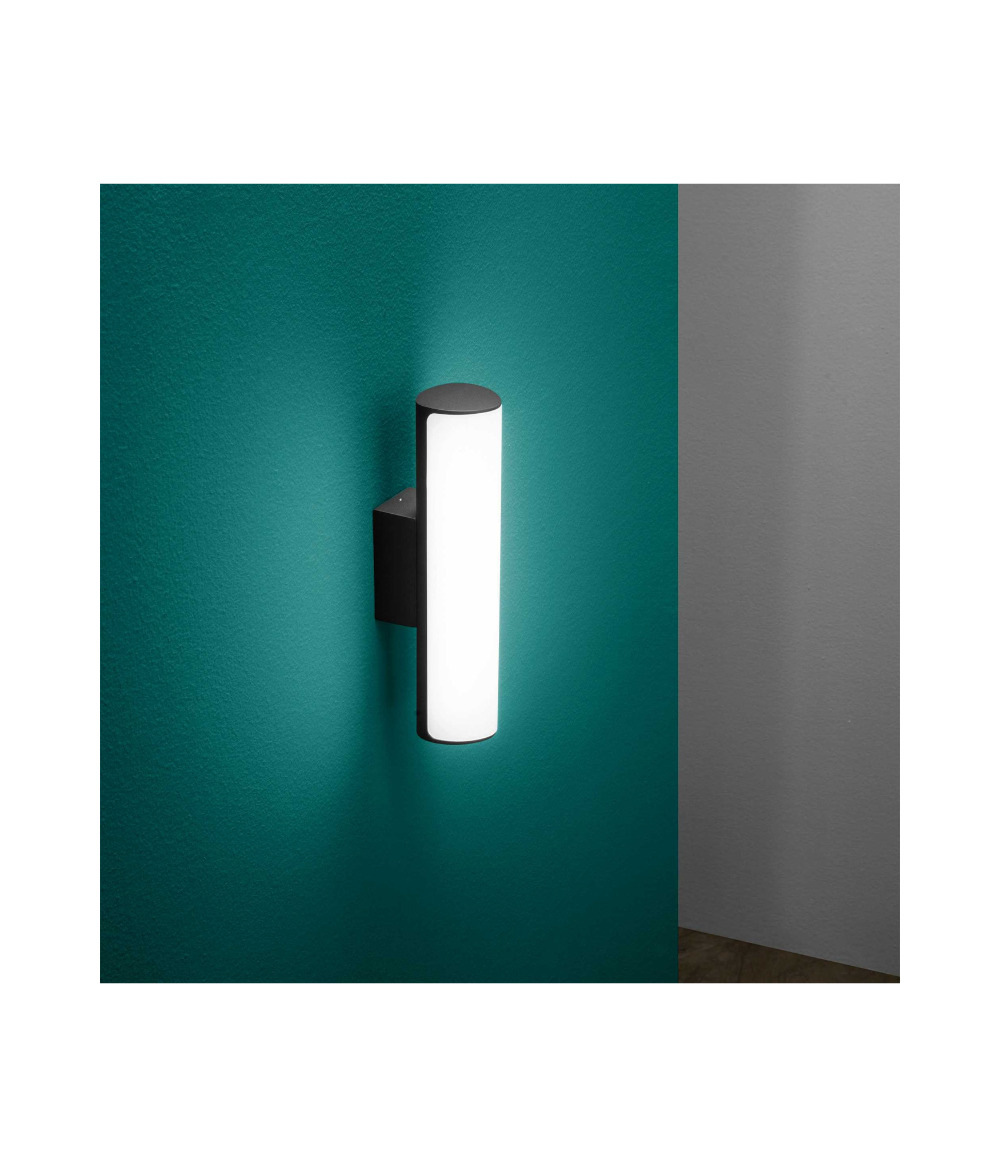

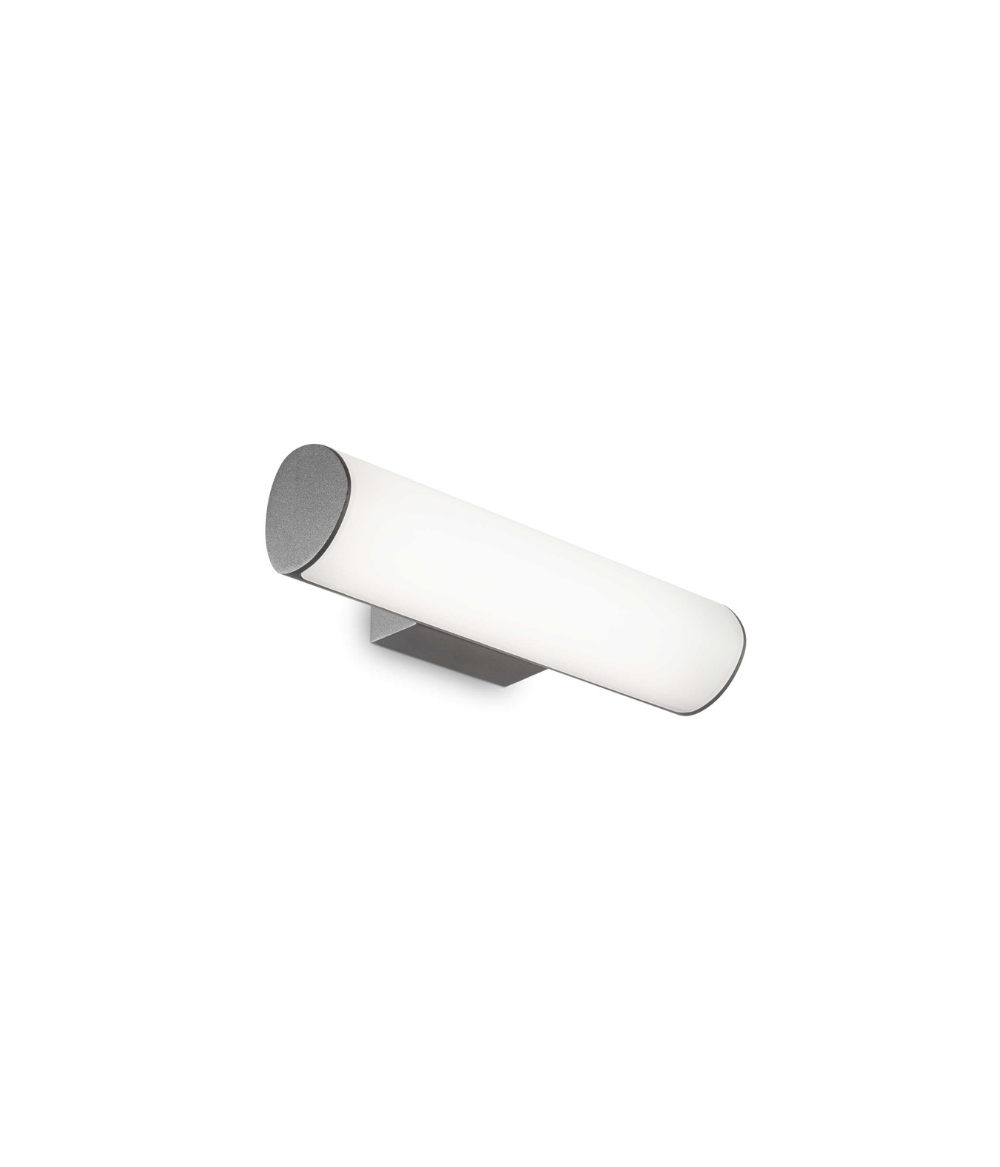

Outdoor wall mounted linear fitting with integrated LED sources and direct light emission.

Light body in powder-coated cast aluminium. Opal colored plastic diffuser. Available in anthracite, white, coffee, gray or black finishes.

Technical Information

INFORMATION Etere ap 3000K Etere ap 4000K
Power output 220-240 V AC 50/60 Hz 220-240 V AC 50/60 Hz
Power supply In-built, included Replaceable (by qualified operators only), electronic In-built, included Replaceable (by qualified operators only), electronic
Protection index (Insulation Class) IP44 ( I ) IP44 ( I )
Dimmer NO, On-Off NO, On-Off
Integrated source Integrated LED module Integrated LED module
Repleaceable source No No
Power 9,5 W 9,5 W
Emission Direct Direct
Max consuption max 9,50 W max 9,50 W
Features LED LED SMD LED SMD
CCT 3000 K 4000 K
Duration LED (t. 25°c) 25000 h 25000 h
CRI > 80 > 80
Light beam flux 1150 lm 1350 lm
Useful light flux 850 lm 990 lm

Placement of lamps in the bathroom

Before installing light in the bathroom, it is important that you keep informed about the strict regulations concerning lamps in wet areas.

Due to the high levels of moisture and steam, the type of lighting and its locations are determined by bathroom lighting zones. In most countries, the bathroom lighting zones are divided into three zones: zone 0, zone 1 and zone 2.

Please note that the regulations are guiding, and they vary depending on the country you live in.

Weight
N/A
Dimensions
N/A
Brand
Materials
IP Rating
Bulb Base
Source Included
LED
Light Source
Repleaceable Source
Color Temperatures
CRI
Lifetime
Lumen
Power

Data Sheet_Etere ap 3000k

Download

Assembly Instructions_Etere ap 3000k

Download

Data Sheet_Etere ap 4000k

Download

Assembly Instructions_Etere ap 4000k

Download
SKU: N/A Categories: , , ,
