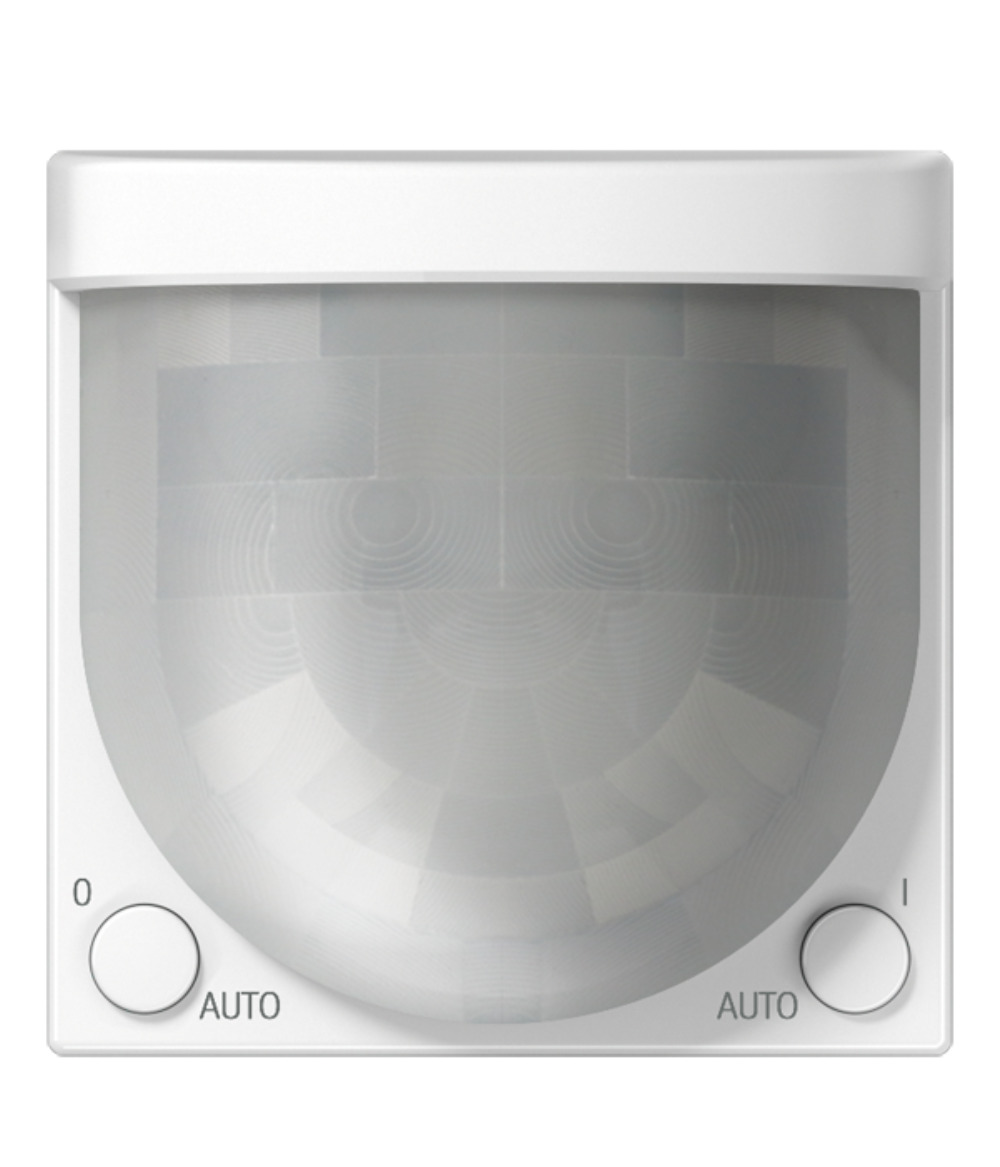

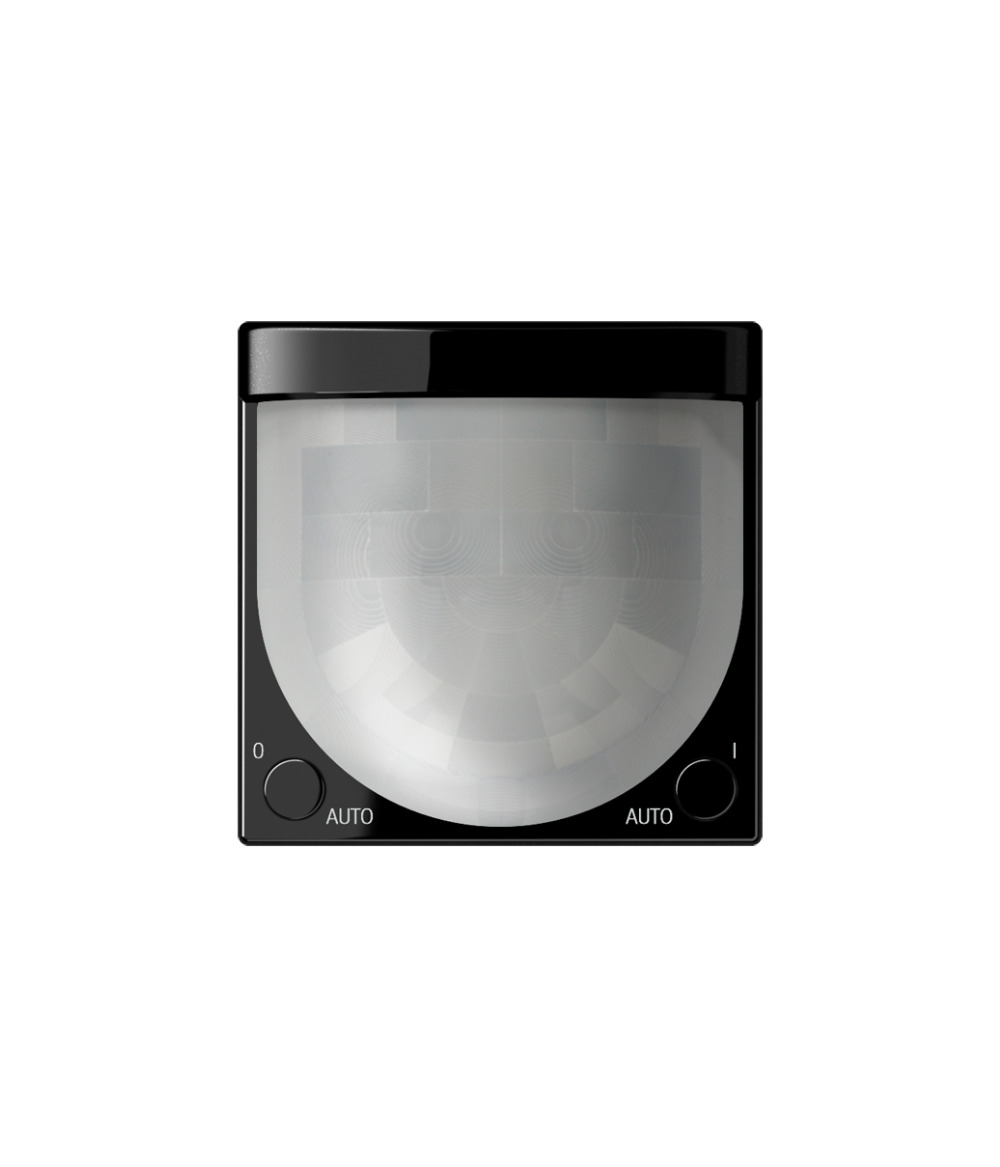

Intended use
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Wireless linking with JUNG HOME system devices
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Wall installation on system insert
Product characteristics
- Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
- 2 buttons for continuous ON/OFF or automatic operation
- Detection range extended by combining several JUNG HOME motion detectors or via satellite input
- Multi-coloured status indicator with optional night mode
- Disabling of local operation
- Free linking of the motion sensor with actuator in the insert or wirelessly with other JUNG HOME devices or for calling up a light scene
- Up to 16 time programs control the functions of the respective insert (ON/OFF switching or dimming)
- Staircase lighting function (lighting cannot be switched off manually) with switch-off warning
- Run-on time
- Activate/deactivate automatic operation using JUNG HOME app
- Automatic summer/winter time changeover
- Automatic date and time update when connecting with smartphone
- Maximum and minimum brightness adjustable, with dimming insert
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Local actuator integrated into groups, central functions and light scenes
- Evaluation of the satellite inputs (if present) for controlling the insert
- Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)
- Time programs with sunrise or sunset (astro function)
- Time programs with random timing
- Dynamic run-on time
- Disable and override functions: Continuous ON/OFF or ON/OFF for fixed time
- Night light function with period for brightness reduction, with dimming insert
- Hotel function (orientation light instead of OFF), with dimming insert
- Warm dimming (changing of the colour temperature with simultaneous brightness increase), with DALI insert
- Switch-on delay / switch-off delay
Technical data
| Ambient temperature: | −5 … +45 °C |
| Transport temperature: | −25 … +70 °C |
| Storing temperature: | −5 … +45 °C |
| Relative humidity: | 20 … 70 % (no condensation) |
| Degree of protection: | IP 20 |
| Accuracy per month: | ± 13 s |
| Power reserve: | min. 4 h |
| Detection angle: | 180° |
| Mounting height: | 1.1 / 2.2 m |
| Sensitivity: | 0, 25, 50, 75, 100 % |
| Brightness setting: | approx. 5 … 1,000 lx (and daytime operation) |
| Run-on time: | approx. 10 s … 60 min |
| Radio frequency: | 2402.0 … 2480.0 MHz |
| Transmitting power: | max. 10 mW (class 1.5) |
| Transmission range | |
| in buildings: | approx. 30 m |
