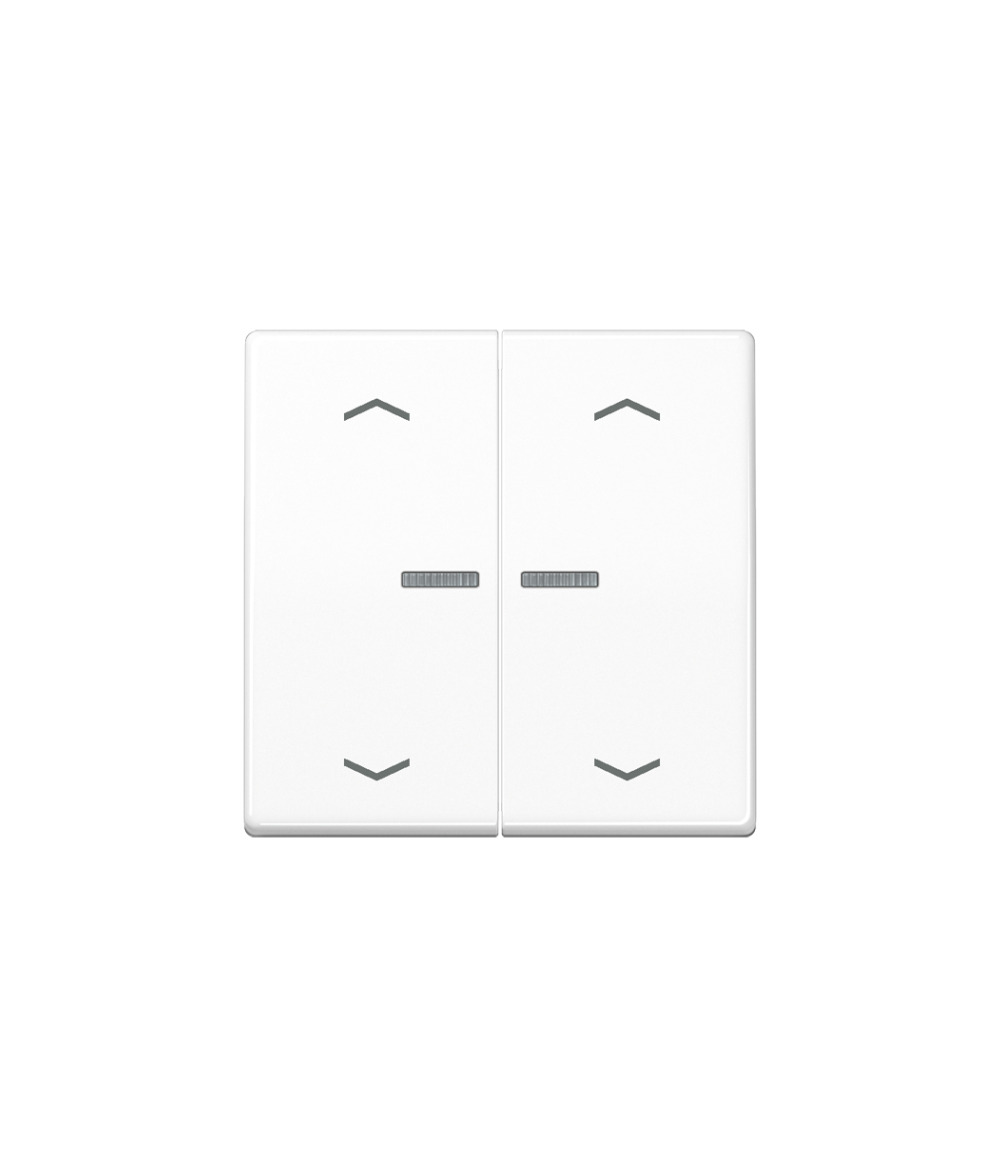

JUNG HOME PUSH-BUTTON 2-GANG WITH ARROW SYMBOLS

Inserts for JUNG HOME push-button 2-gang with arrow symbols

Frames for JUNG HOME push-button 2-gang with arrow symbols

Intended use

• Manual and automatic operation of e.g. blinds/shutters, lighting or fans
• Wireless linking with JUNG HOME system devices
• Operation with system insert for switching, dimming, blind or satellite insert 3-wire

Product characteristics

• Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth^®
• Top, bottom and full-surface operation with up to 2 linked functions per rocker
• Use the operating buttons to control groups, central functions or to call up light scenes
• Use the operating buttons to operate wirelessly linked JUNG HOME devices
• Multi-coloured status indicator with optional night mode
• Actuator status feedback via status LED
• Disabling of local operation
• Local actuator integrated into groups, central functions and light scenes
• Up to 16 time programs control the functions of the respective insert (e.g. switch ON/OFF, dim, move blind, adjust temperature)
• Staircase lighting function (lighting cannot be switched off manually) with switch-off warning
• Run-on time
• Activate/deactivate automatic operation using JUNG HOME app
• Automatic summer/winter time changeover
• Automatic date and time update when connecting with smartphone
• Maximum and minimum brightness adjustable, with dimming insert
• Switch-on with last brightness or fixed switch-on brightness, with dimming insert
• Ventilation position, blind/shutter running time, slat change-over time, change-over time for direction change and inverse operation adjustable, with blind insert
• Evaluation of the satellite inputs (if present) for controlling the insert
• Bluetooth^® SIG Mesh for fully encrypted wireless communication and repeater function
• Can be updated using JUNG HOME app

Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)

• Use the operating buttons to trigger the disable and override functions
• Time programs with sunrise or sunset (astro function)
• Time programs with random timing
• Disable and override functions: Lock-out protection, continuous ON/OFF or ON/OFF for a fixed time
• Night light function with period for brightness reduction, with dimming insert
• Hotel function (orientation light instead of OFF), with dimming insert
• Warm dimming (changing of the colour temperature with simultaneous brightness increase), with dimming insert
• Switch-on delay / switch-off delay

Technical data
