SKU : BT A 1521 S WW
with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm2
Supporting frame, claws and claw screws are integrated into the earth protection.
available April 2023

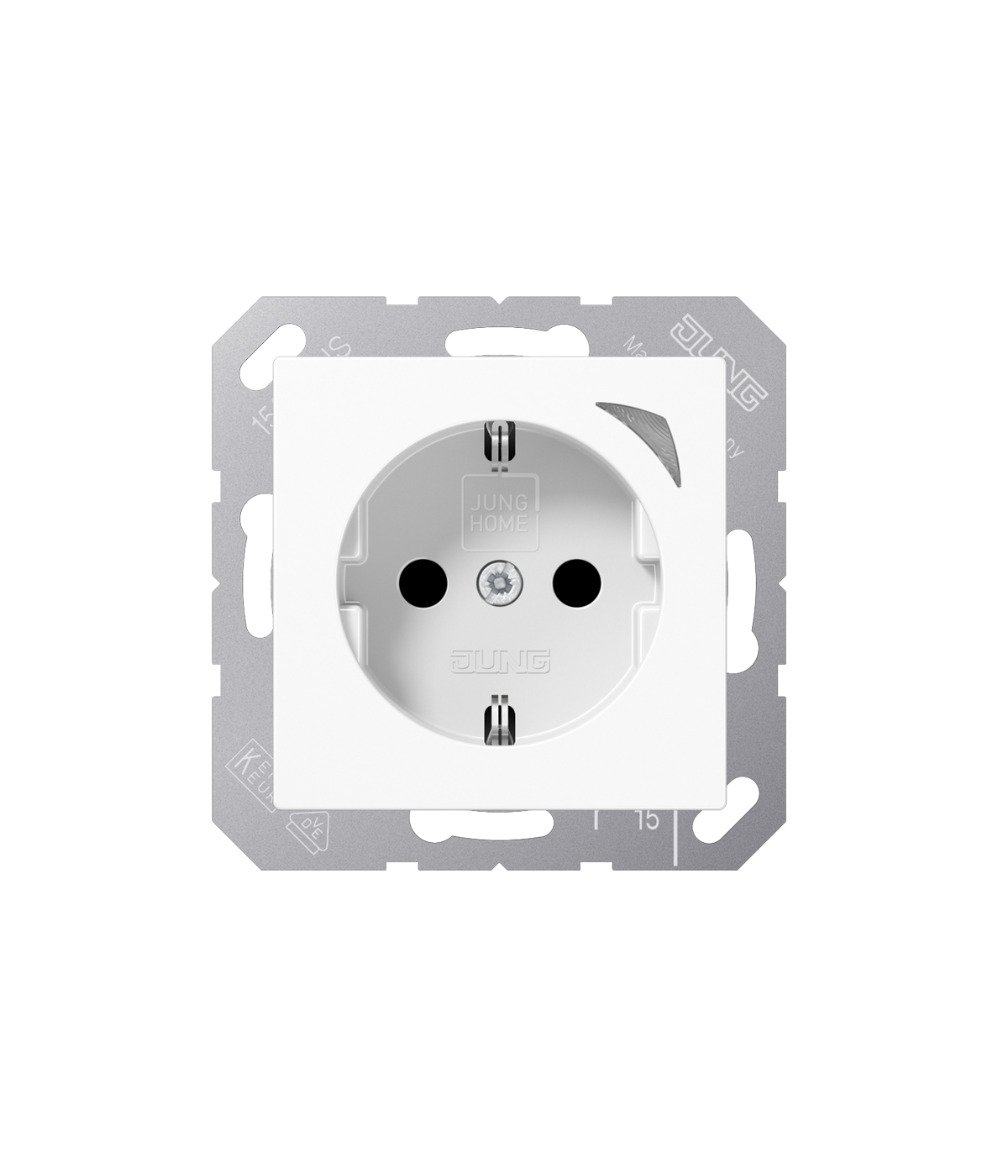

JUNG HOME SCHUKO® SOCKET
Frames for JUNG HOME SCHUKO® socket, Safety+, BT A 1521 S WW
Intended use
- Intended use
- Manual or automatic switching of lighting and common household devices
- Wireless linking with JUNG HOME system devices
- For use in dry indoor areas
- Installation in flush box with dimensions according to DIN 49073
- Depth of flush box (inner dimension): min. 53 mm
Product characteristics
- Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
- Button for switching and for commissioning
- Multi-coloured status indicator with optional night mode
- Disabling of local operation
- Up to 16 time programs
- Run-on time
- Automatic summer/winter time changeover
- Activate/deactivate automatic operation using JUNG HOME app
- Automatic date and time update when connecting with smartphone
- Integrated 16 A switch actuator
- Local actuator integrated into groups, central functions and light scenes
- Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Available in future via update:
(Notes on updates and schedules can be found at www.jung.de/JUNGHOME)- Switching of socket to continuously ON or OFF via disabling functions
- Time programs with sunrise or sunset (astro function)
- Time programs with random timing
- Switch-on delay / switch-off delay
Zubehör:
Rahmen 28 mm Aufbauhöhe Art.-Nr.: A 558.. HBF .., LS 98.. HBF ..
Technical data
| Rated voltage: | AC 220 … 250 V ~ |
| Mains frequency: | 50/60 Hz |
| Stand-by power: | max. 0.25 W |
| Ambient temperature: | −5 … +45 °C |
| Transport temperature: | −25 … +70 °C |
| Storing temperature: | −5 … +45 °C |
| Relative humidity: | 20 … 70 % (no condensation) |
| Accuracy per month: | ± 13 s |
| Power reserve: | min. 4 h |
| Switching current at 25 °C | |
| Ohmic: | 16 A |
| Motors: | 4.3 A (@ cos ϕ 0.6) |
| Connected load | |
| Incandescent lamps: | 2300 W |
| HV halogen lamps: | 2300 W |
| electronic transformers: | 1500 W |
| inductive transformers: | 1000 VA |
| HV LED lamps: | typical 400 W |
| Compact fluorescent lamps: | typical 400 W |
| Fluorescent lamps non-compensated: | 920 VA |
| Installation depth: | 45 mm |
| Radio frequency: | 2402.0 … 2480.0 MHz |
| Transmitting power: | max. 10 mW (class 1.5) |
| Transmission range | |
| in buildings: | approx. 30 m |
