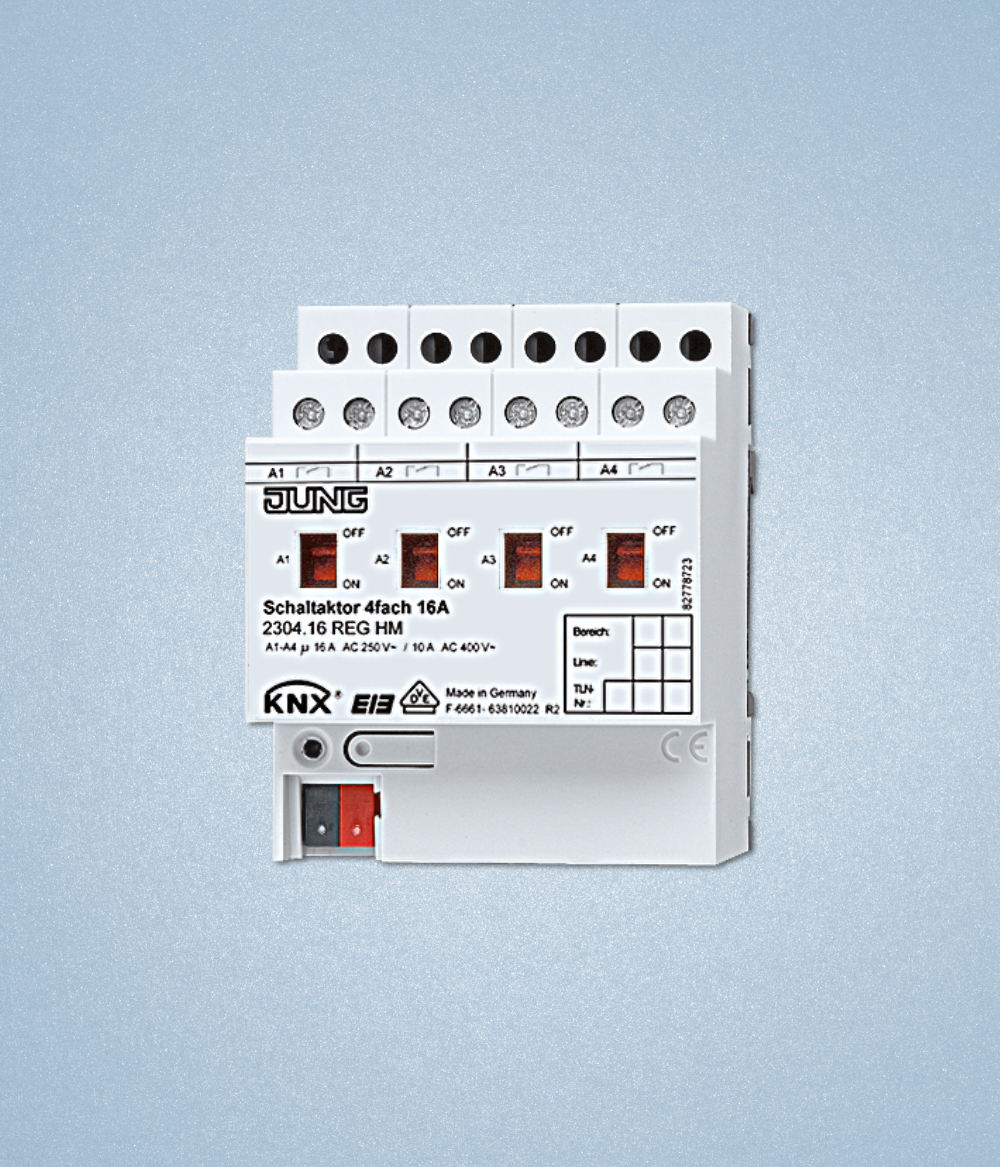

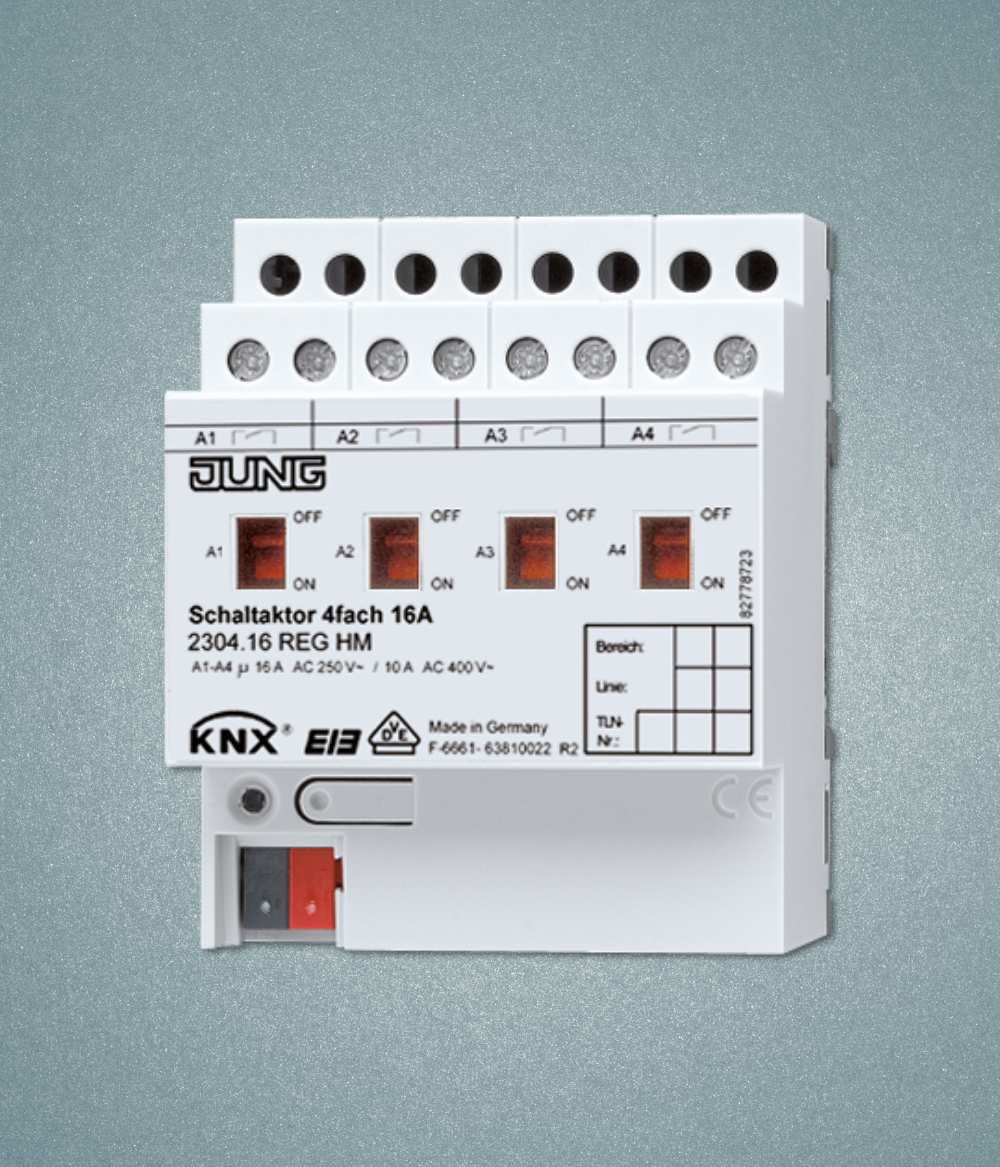

SWITCH ACTUATOR, 4-GANG, WITH MANUAL MECH. OPERATION, AC 110-230 V ~

rail mounting device, 4 rail units
4 NO contacts with manual mechanical operation and status indicator
ETS product family: Output
Product type: Binary output

2304.16 REGHM

Intended use

  • Switching of 110 … 230 V AC or 24 V AC/DC electrical loads with floating contacts
  • Mounting on DIN rail according to EN 60715 in distribution boxes



Product characteristics

  • Manual switching of the relays is independent of the bus
  • Operation as NO or NC contacts
  • Logic operation and forcing function
  • Switching feedback (bus operation only)
  • Switch position display
  • Central switching function with collective feedback
  • Disabling function for each channel
  • Time functions: switch-on delay, switch-off delay, staircase lighting timer with pre-warning function
  • Integration into light scenes
  • Operating hours counter, configurable via bus
  • Input monitoring for cyclical updating with safety circuit
  • No additional power supply necessary

Technical data

KNX medium: TP 256
Rated voltage KNX: DC 21 … 32 V SELV
Connection, KNX: terminal
Power consumption KNX: typical 150 mW
Power loss: max. 4 W
Ambient temperature: −5 … +45 °C
Storage/transport temperature: −25 … +70 °C
Mounting width: 72 mm (4 rail units)

Connection, outputs

    Connection mode: screw terminals
    single wire: 1 x 0.5 … 4 mm²
    stranded without ferrule: 1 x 0.5 … 4 mm²
    stranded with ferrule: 1 x 0.5 … 2.5 mm²

Switching outputs

Contact type: floating relay contacts (μ contact)
Switching voltage AC: AC 250 / 400 V
Switching current 230 V AC1: 16 A
Switching current 230 V AC3: 10 A
Switching current 400 V AC1: 10 A
Switching current 400 V AC3: 6 A
Fluorescent lamps: 10 AX
Ohmic load: 3680 W
Capacitive load: 10 A / 140 µF
Switching voltage DC: DC 12 … 24 V
Switching current DC: 16 A
Min. switching current: 100 mA
Switch-on current 150 µs: 400 A
Switch-on current 600 µs: 200 A

Lamp loads

Incandescent lamps: 2500 W
HV halogen lamps: 2500 W

LV halogen lamps with

    inductive transformers: 1200 VA
    electronic transformers: 1500 W

Fluorescent lamps T5/T8

    non-compensated: 2500 W
    parallel compensated: 1300 W / 140 µF
    lead-lag circuit: 2300 W / 140 µF

Compact fluorescent lamps

    non-compensated: 2500 W
    parallel compensated: 1300 W / 140 µF

Mercury vapour lamps

    non-compensated: 2000 W
    parallel compensated: 2000 W / 140 µF
Approvals: VDE
