All the sound you need in a slim format
With simple connectivity and a slim chassis, the NR1510 drives elevated audio with incredible ease.
Onboard technologies
Key Benefits
Slim Profile, Marantz Performance
Slim profile that’s half the height of a traditional AV receiver delivers exceptional performance and the most musical sound
Bluetooth Headphone Transmission
Connect any pair of Bluetooth Headphones to the receiver and enjoy music or movie sound with pure freedom. With or without speakers turned on.
5-Channel Discrete Power Amplifier
5-channel discrete power amplifier, 50W per channel (8-ohm, 20Hz – 20kHz, 0.08% THD, 2 Ch. drive)
More Vibrant Images With Dolby Vision
Supports Dolby Vision for enhanced picture quality. From vivid colors to darker shadows, enjoy a wider more diverse color gamut and experience.
Slim Profile
Enjoy the most musical performance from a compact, slim chassis. At half the height of a traditional AV receiver, the Marantz NR1510 delivers the musical sound that’s synonymous with Marantz.
Powerful 5-Channel Discrete Amplifier
Featuring a high-current discrete power amplifier section, enjoy elevated sound for movies and music with identical power on all five channels (50W per channel: 8-ohm, 20Hz – 20kHz, 0.08% THD, 2 Ch. Drive) with low-impedance drive capability for superb speaker control.
Connectivity, Streaming & Multi-Room Listening
Stream the most popular music services — like Spotify, Pandora, Tidal and many more — via Bluetooth, AirPlay 2 or the HEOS app.
The Most Musical Sound
Extensively tuned by Marantz sound masters to deliver an exquisite sonic signature. No component leaves the hands of Marantz sound masters until it passes rigorous testing. Envelop yourself with the most musical sound, from any source.
Multichannel Surround
| DTS HD Master / DTS:X / DTS Neural:X | Yes / No / No |
| DTS Virtual:X | No |
| IMAX Enhanced | No |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | No / No |
| Dolby ProLogic Ilz / Dolby Surround | No / No |
| Auro 3D / Aurmatic | No / No |
| Multichannel Stereo | 5.1 |
| Max Number of Processing (Preamp) Channels | 5.1 |
| Audyssey | MultEQ |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Compressed Audio Enhancer: MDAX2 | Yes |
Network
| HEOS Multi-room and Streaming / Network Audio Streaming | Yes / Yes |
| Lossy formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | up to DSD5.6 |
| Gapless Playback | Yes (FLAC, WAV ,ALAC ,DSD) |
| AirPlay 2 Audio Streaming | Yes |
| Internet radio | Yes (TuneIn) |
| Spotify connect / Deezer / TIDAL / Napster / Pandora / SiriusXM | Yes / Yes / Yes / Yes / Yes / Yes |
| Compatible with Remote APP for Smart Phones | Marantz 2016 AVR Remote |
| Ethernet / Wi-Fi | Yes / Yes (dual antenna/ dual band) |
| Bluetooth | Yes |
HDMI
| 4K 60Hz 4:4:4 resolution / HDCP 2.3 | Yes / Yes |
| eARC (Enhanced Audio Return Channel) | Yes |
| Analog to HDMI Scaling | No |
| HDMI to HDMI Scaling | No |
| GUI Overlay on HDMI | Yes |
| HDR / HLG / Dolby Vision | Yes (HDR10) / Yes / Yes |
| 3D Signal Pass-Through | Yes |
| HDMI Pass-Through in Standby Mode | Yes |
Multi-Room / CI
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes / Yes |
| Multi-Room Zones | No |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | No / No / No / No |
| IP Control / RS232 Control / Web Control / App Control | Yes |
| Domotz Pro / IHIJI compatible | Yes / Yes |

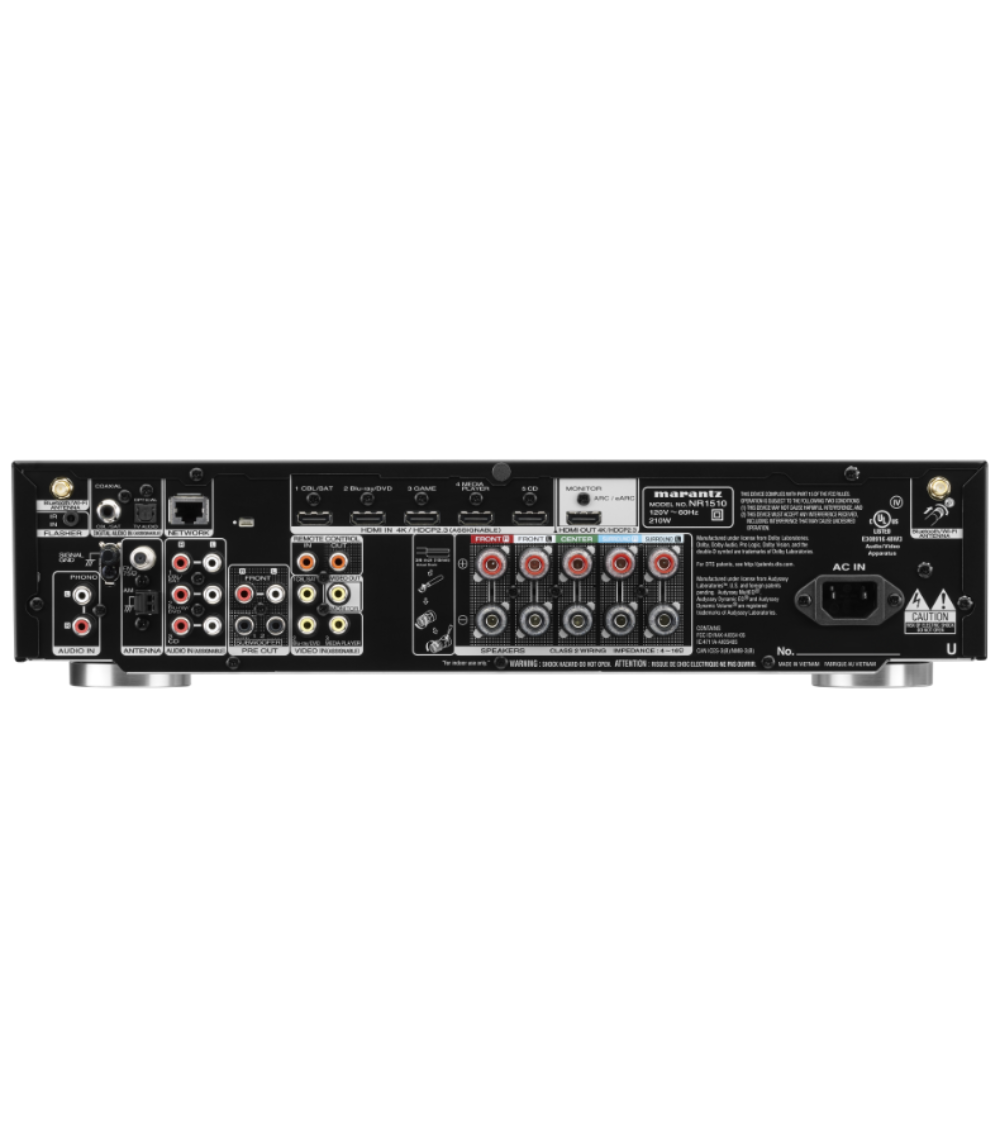

Inputs/Outputs
| Composite In / Out | 3 / 1 |
| Component In / Out | No / No |
| HDMI In / Out | 5+1 / 1 |
| Analog In / Out | 3 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 1 / 1 |
| Multi-Room Out: Analog / Digital | No / No |
| USB Audio / Made for iPod / Made for iPhone | 2 |
| Multichannel Pre Out | Yes (2.2) / No |
| Subwoofer Out | 2 |
| 7.1 Multichannel Input | No |
| Speaker Terminal: Gold Plated Screw / Regular Screw | No / Yes |
| Speaker A / B | No |
| Bi-Amp Drive | No |
| Multi-Room Speaker Terminal | No |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / Yes / Yes |
Others
| FL Display | 1 line |
| Graphic User Interface – GUI | Hybrid GUI |
| ISF Certification | No |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | No |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep / Timer | Yes |
General
| System Remote Control | RC040SR |
| Power Consumption in W | 180 |
| Power Consumption No-Sound (ECO on/off) in W | No |
| Standby Consumption in W | 0.2 (with CEC 0.5) |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 14.9 x 4.1 17.3 x 14.9 x 6.9 【 17.3 x 14.5 x 4.1 】 |
| Weight in lbs. | 18.1 |
| Available Colors | Black |
| UPC code | 699927241650 |
Specifications
| Number of Poweramps | 5 |
| Speaker Terminal | 5 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | 50 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 60 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 100 W |
